Item Code: GH-14502-C

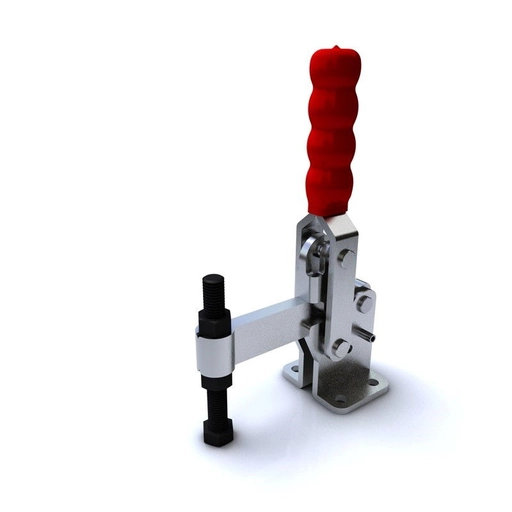

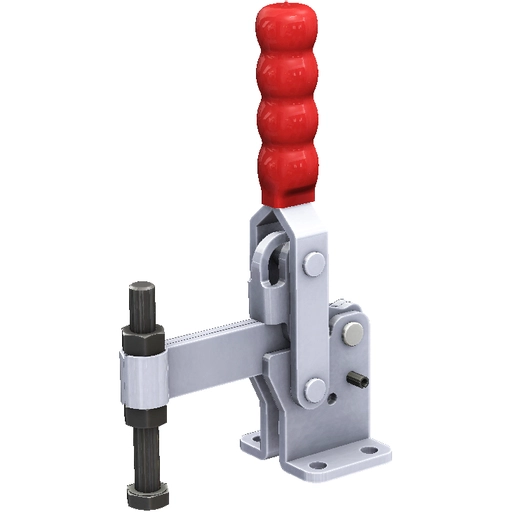

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 127mm. Holding Force 450daN.

Item Code: GH-14502-C

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 127mm. Holding Force 450daN.

GH-14502-C Vertical Toggle Clamp Flat Base Fixed Arm Size 450daN

Holding Force: 450daN
Arm Opens: 90/125°
Handle Opens: 70/85°
Weight: 1.2Kg
Spindle Supplied: SA-121017

What's In The Bag
GH-14502-C Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

23 in stock

Fixed
Flat
401+kg
201-250mm
101-150mm
51+mm
51-75mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£37.88  ea. Excl VAT £45.46  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £34.85 8%
30 - 49 £32.96 13%
50 + £31.44 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force401+kg
Height201-250mm
Total Length101-150mm
Underarm Height51+mm
Arm Length51-75mm
Spindle SizeM12
Download STP

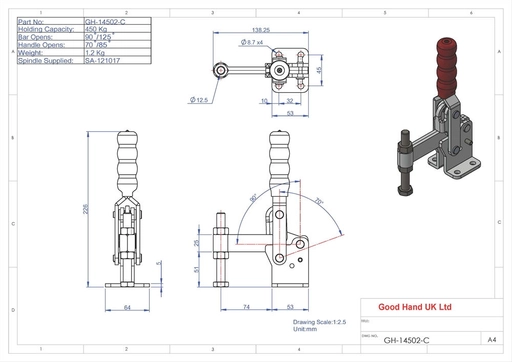

GH-14502-C Datasheet
