Item Code: GH-12265-L

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 229mm. Holding Force 110daN.

Item Code: GH-12265-L

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 229mm. Holding Force 110daN.

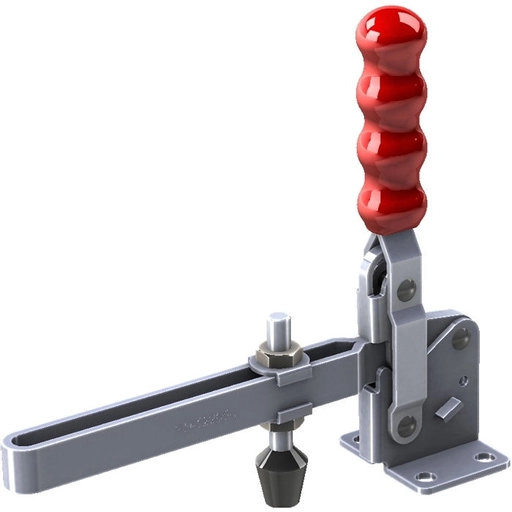

GH-12265-L Vertical Toggle Clamp Flat Base Slotted Arm Size 110daN

Holding Force: 110daN
Arm Opens: 112°
Handle Opens: 61°
Weight: 0.78Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-12265-L Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

19 in stock

Adjustable
Flat
101-200kg
201-250mm
201-250mm
41-50mm
101+mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£34.07  ea. Excl VAT £40.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £31.34 8%
30 - 49 £29.64 13%
50 + £28.28 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force101-200kg
Height201-250mm
Total Length201-250mm
Underarm Height41-50mm
Arm Length101+mm
Spindle SizeM10
Download STP

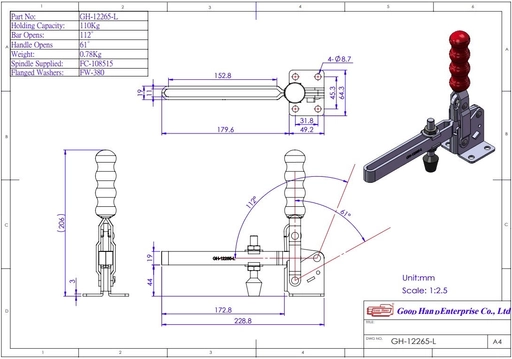

GH-12265-L Datasheet
