Item Code: GH-12205

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 163mm. Holding Force 182daN.

Item Code: GH-12205

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 163mm. Holding Force 182daN.

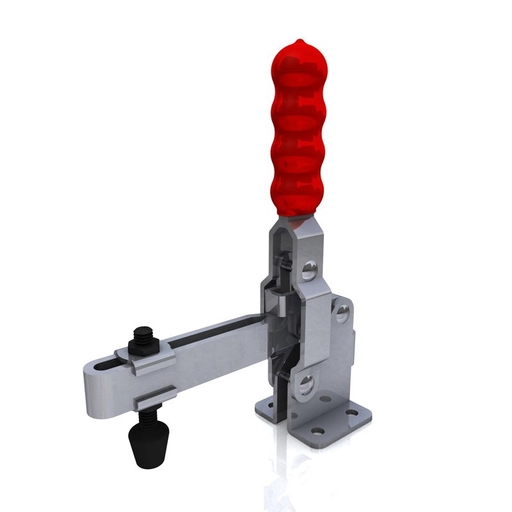

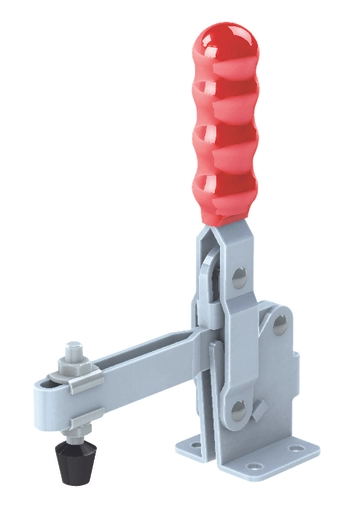

GH-12205 Vertical Toggle Clamp Flat Base Slotted Arm Size 182daN

Holding Force: 182daN
Arm Opens: 101°
Handle Opens: 57°
Weight: 0.620Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12205 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
101-200kg
201-250mm
151-200mm
51+mm
101+mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£16.35  ea. Excl VAT £19.62  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £15.04 8%
30 - 49 £14.22 13%
50 + £13.57 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force101-200kg
Height201-250mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM8
Download STP

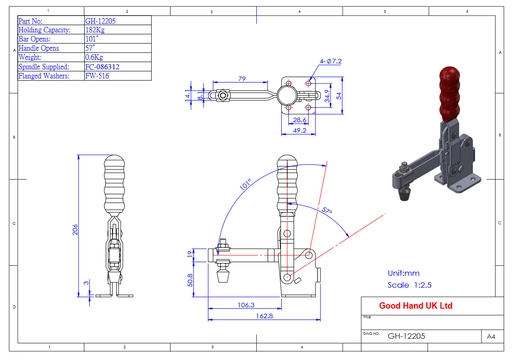

GH-12205 Datasheet
