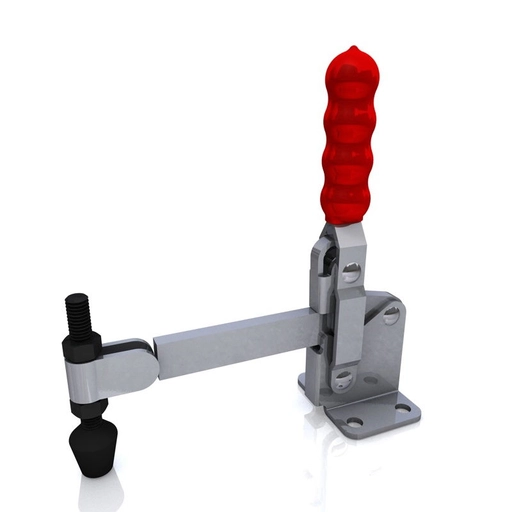

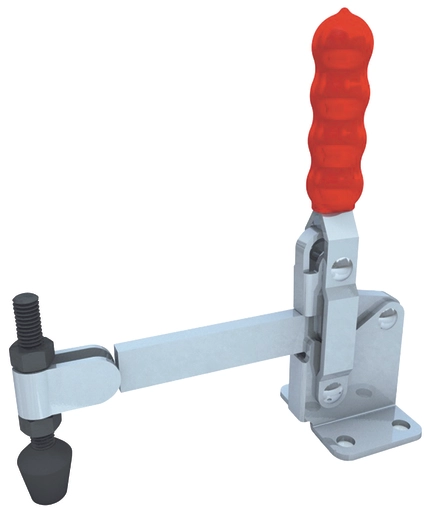

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 141mm. Holding Force 340daN.

Item Code: GH-12275

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 141mm. Holding Force 340daN.

Item Code: GH-12275

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 141mm. Holding Force 340daN.

GH-12275 Vertical Toggle Clamp Flat Base Solid Arm Size 340daN

Holding Force: 340daN
Arm Opens: 112°
Handle Opens: 61°
Weight: 0.68Kg
Spindle Supplied: FC-108515
Bolt Retainer Supplied: BR-380

What's In The Bag
GH-12275 Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
BR-380 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

48 in stock

£20.57 ea. Excl VAT £24.68 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£18.92	8%
30 - 49	£17.90	13%
50 +	£17.07	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

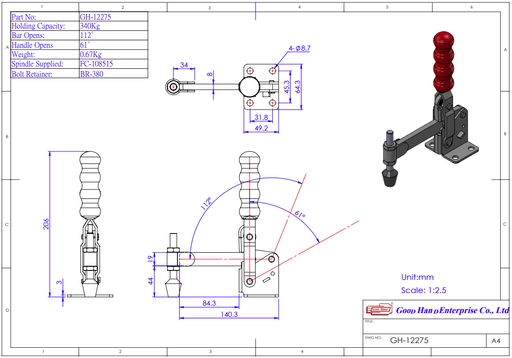

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Flat
Holding Force	301-400kg
Height	201-250mm
Total Length	101-150mm
Underarm Height	41-50mm
Arm Length	76-100mm
Spindle Size	M10

Downloads

Download STP

GH-12275 Datasheet

Vertical Toggle Clamp. Overall Height 206mm. Overall Length 141mm. Holding Force 340daN.
