Item Code: GH-12501-B

Vertical Toggle Clamp. Overall Height 194mm. Overall Length 111mm. Holding Force 250daN.

Item Code: GH-12501-B

Vertical Toggle Clamp. Overall Height 194mm. Overall Length 111mm. Holding Force 250daN.

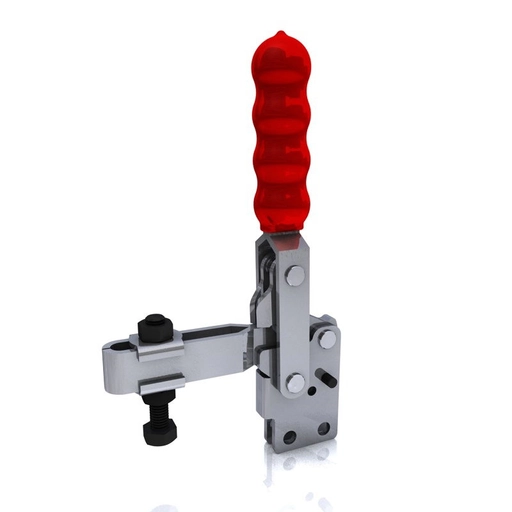

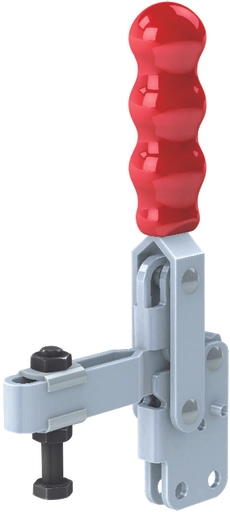

GH-12501-B Vertical Toggle Clamp Straight Base Slotted Arm Size 250daN

Holding Force: 250daN
Arm Opens: 90-150°
Handle Opens: 70-100°
Weight: 0.435Kg
Spindle Supplied: SA-085012
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12501-B Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
201-300Kg
151-200mm
101-150mm
41-50mm
51-75mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£17.39  ea. Excl VAT £20.87  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £16.00 8%
30 - 49 £15.13 13%
50 + £14.43 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force201-300Kg
Height151-200mm
Total Length101-150mm
Underarm Height41-50mm
Arm Length51-75mm
Spindle SizeM8
Download STP

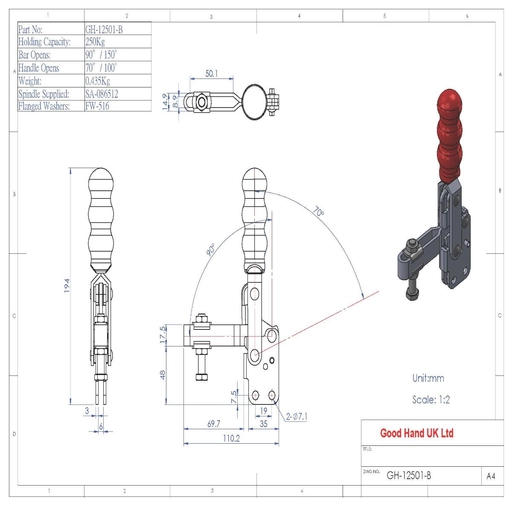

GH-12501-B Datasheet
