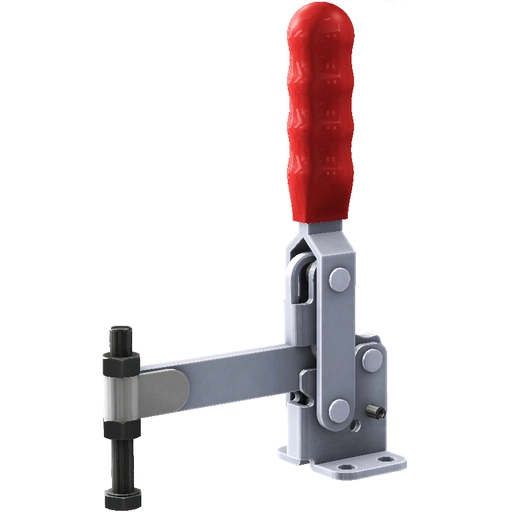

Vertical Toggle Clamp. Overall Height 178mm. Overall Length 112mm. Holding Force 250daN.

Item Code: GH-12502-A

Vertical Toggle Clamp. Overall Height 178mm. Overall Length 112mm. Holding Force 250daN.

Item Code: GH-12502-A

Vertical Toggle Clamp. Overall Height 178mm. Overall Length 112mm. Holding Force 250daN.

GH-12502-A Vertical Toggle Clamp Flat Base Solid Arm Size 250daN

Holding Force: 250daN
Arm Opens: 90/150°
Handle Opens: 70/100°
Weight: 0.44Kg
Spindle Supplied: SA-086512 + BR-516

What's In The Bag
GH-12502-A Toggle Clamp
FC-086512 M8x65mm Neoprene Tipped Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

50+ in stock

£17.01 ea. Excl VAT £20.41 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£15.65	8%
30 - 49	£14.80	13%
50 +	£14.12	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

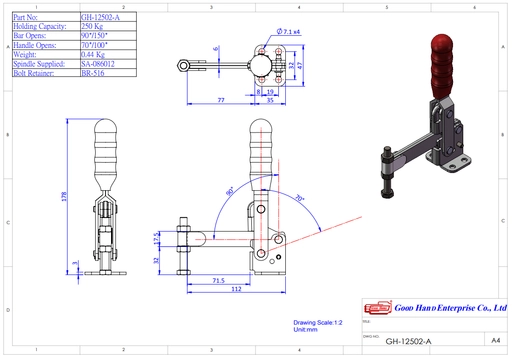

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Flat
Holding Force	201-300Kg
Height	151-200mm
Total Length	101-150mm
Underarm Height	31-40mm
Arm Length	51-75mm
Spindle Size	M8

Downloads

Download STP

Gh-12502-A Datasheet

Vertical Toggle Clamp. Overall Height 178mm. Overall Length 112mm. Holding Force 250daN.

Vertical Toggle Clamp. Overall Height 178mm. Overall Length 112mm. Holding Force 250daN.
