Vertical Toggle Clamp. Overall Height 170mm. Overall Length 79mm. Holding Force 150daN.

Item Code: GH-12003-B

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 79mm. Holding Force 150daN.

GH-12003-B-150Kg-side-mounting-vertical-toggle-clamp_1200x1200.jpg?

Item Code: GH-12003-B

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 79mm. Holding Force 150daN.

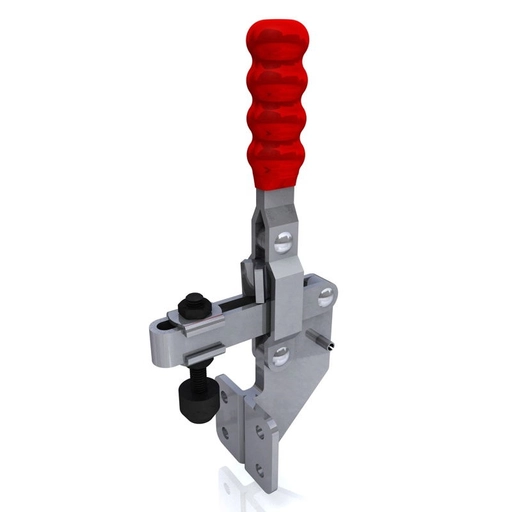

GH-12003-B Vertical Toggle Clamp with Side Mounting and Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 108°
Handle Opens: 70°
Weight: 0.28Kg
Spindle Supplied: SA-064010+NC-06 Cap
Flanged Washers Supplied: FW-140

What's In The Bag
GH-12003-B Toggle Clamp
SA-064010 M6x44mm Spindle With Nuts
FW-140 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Arm Type: Adjustable

Base Type: Side Mounted

Holding Force: 101-200kg

Height: 151-200mm

Total Length: 51-100mm

Underarm Height: 51+mm

Arm Length: 26-50mm

Spindle Size: M6

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0

Qty

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

£16.11 ea. Excl VAT £19.33 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£14.82	8%
30 - 49	£14.02	13%
50 +	£13.37	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0

Qty

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

Quick Links

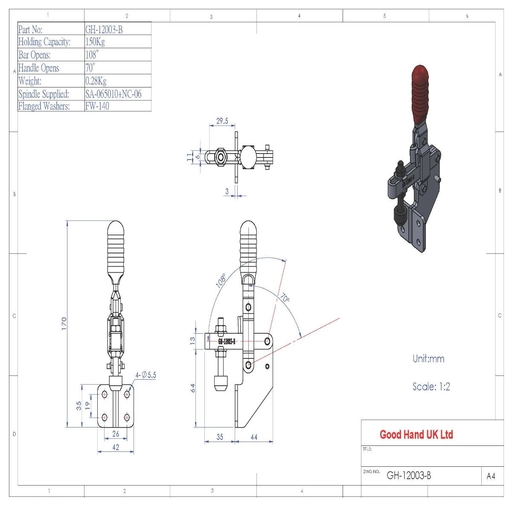

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Side Mounted
Holding Force	101-200kg
Height	151-200mm
Total Length	51-100mm
Underarm Height	51+mm
Arm Length	26-50mm
Spindle Size	M6

Downloads

Download STP

GH-12003-B Datasheet

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 79mm. Holding Force 150daN.

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 79mm. Holding Force 150daN.
