Item Code: GH-12003-C

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 70mm. Holding Force 200daN.

Item Code: GH-12003-C

Vertical Toggle Clamp. Overall Height 170mm. Overall Length 70mm. Holding Force 200daN.

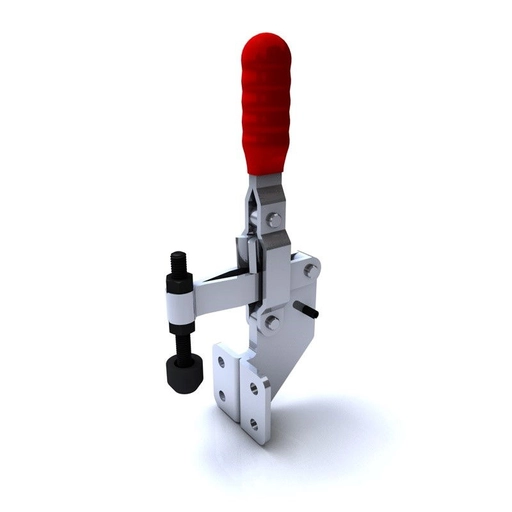

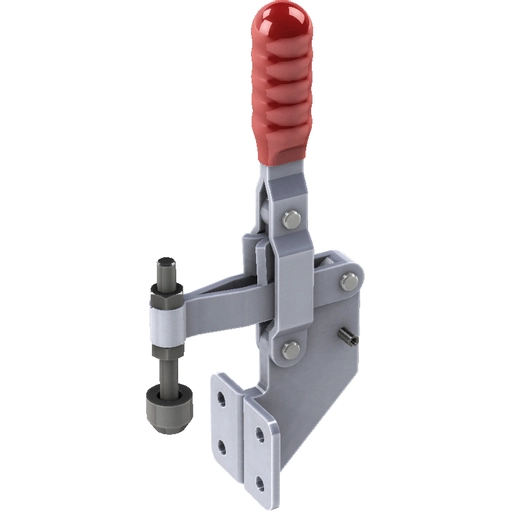

GH-12003-C Vertical Toggle Clamp with Side Mounting Base and Fixed Arm Size 200daN

Holding Force: 200daN
Arm Opens: 108°
Handle Opens: 70°
Weight: 0.28Kg
Spindle Supplied: SA-065010 + NC-06

What's In The Bag
GH-12003-C Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Fixed
Side Mounted
101-200kg
151-200mm
51-100mm
51+mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£16.36  ea. Excl VAT £19.63  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £15.05 8%
30 - 49 £14.23 13%
50 + £13.58 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeSide Mounted
Holding Force101-200kg
Height151-200mm
Total Length51-100mm
Underarm Height51+mm
Arm Length26-50mm
Spindle SizeM6
Download STP
GH-13003-C Datasheet
