Item Code: GH-12130-HB

Vertical Toggle Clamp. Overall Height 167mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12130-HB

Vertical Toggle Clamp. Overall Height 167mm. Overall Length 118mm. Holding Force 227daN.

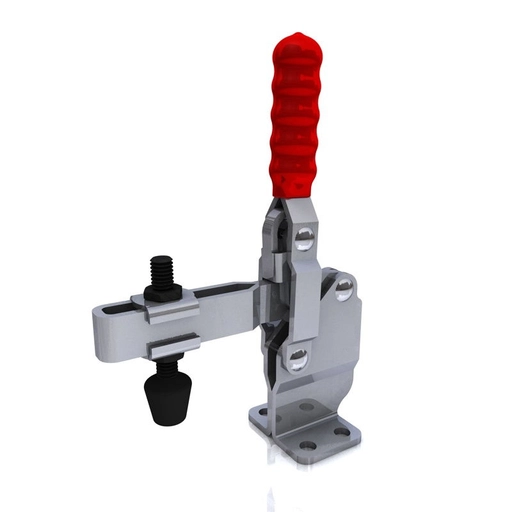

GH-12130-HB Vertical Toggle Clamp High Flat Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.401Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12130-HB Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
151-200mm
201-300Kg
M8
101-150mm
51+mm

£15.41  ea. Excl VAT £18.49  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £14.18 8%
30 - 49 £13.41 13%
50 + £12.79 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height151-200mm
Holding Force201-300Kg
Spindle SizeM8
Total Length101-150mm
Underarm Height51+mm
Download STP

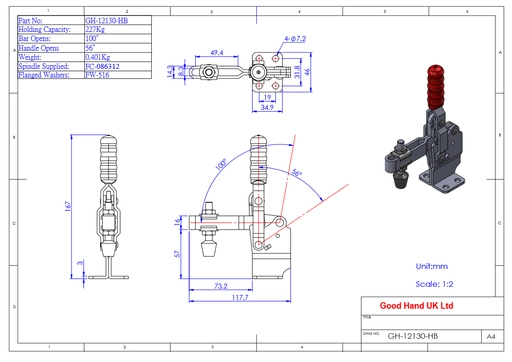

GH-12130-HB Datasheet
