Item Code: GH-12135

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12135

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 118mm. Holding Force 227daN.

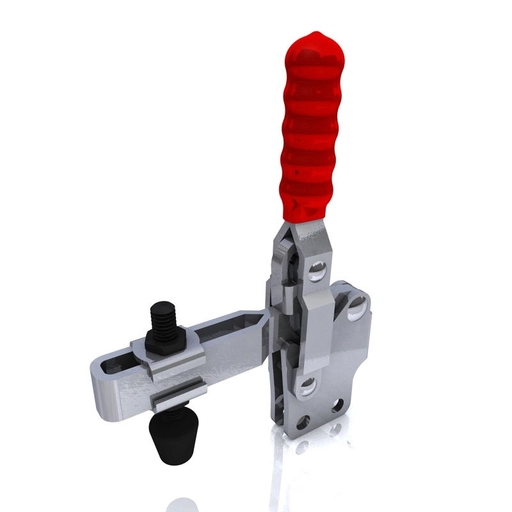

GH-12135 Vertical Toggle Clamp Straight Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.355Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12135 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
201-300Kg
151-200mm
101-150mm
41-50mm
51-75mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.11  ea. Excl VAT £16.93  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.98 8%
30 - 49 £12.28 13%
50 + £11.71 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force201-300Kg
Height151-200mm
Total Length101-150mm
Underarm Height41-50mm
Arm Length51-75mm
Spindle SizeM8
Download STP

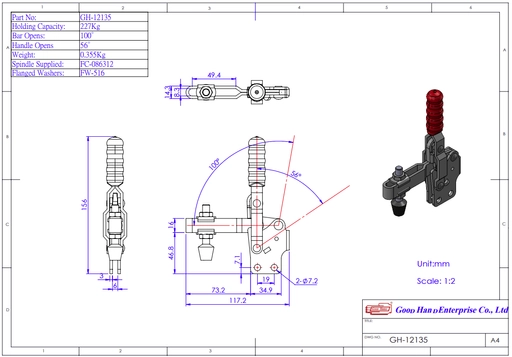

GH-12135 Datasheet
