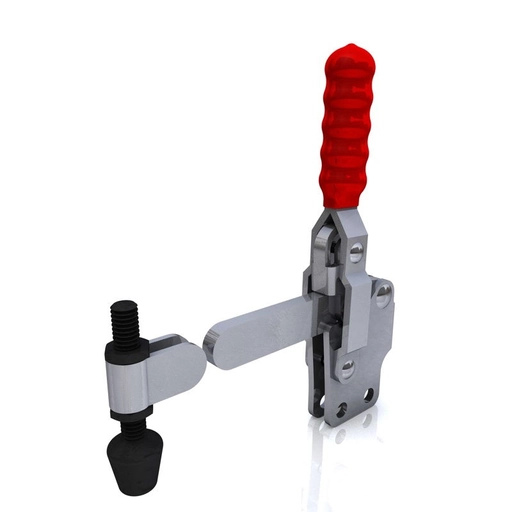

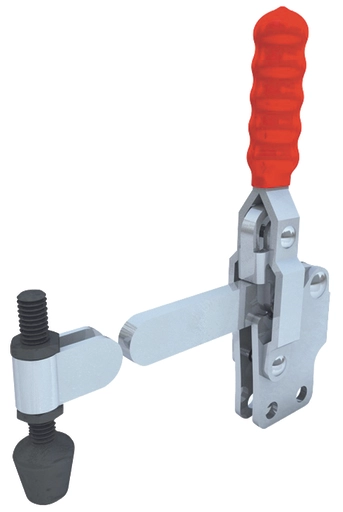

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 104mm. Holding Force 227daN.

Item Code: GH-12145

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 104mm. Holding Force 227daN.

Item Code: GH-12145

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 104mm. Holding Force 227daN.

GH-12145 Vertical Toggle Clamp Straight Base Solid Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.34Kg
Spindle Supplied: FC-086312
Bolt Retainer Supplied: BR-516

What's In The Bag
GH-12145 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Assemble

Quick Links

50+ in stock

£14.65 ea. Excl VAT £17.58 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£13.48	8%
30 - 49	£12.75	13%
50 +	£12.16	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Straight
Holding Force	201-300Kg
Height	151-200mm
Total Length	101-150mm
Underarm Height	41-50mm
Arm Length	51-75mm
Spindle Size	M8

Downloads

Download STP

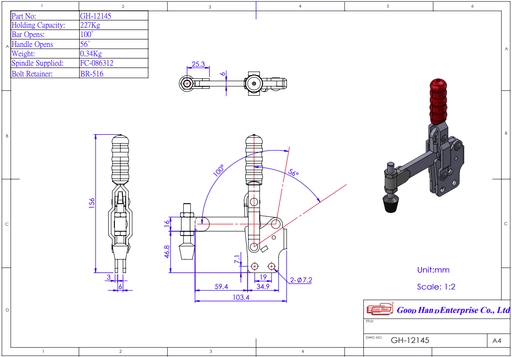

GH-12145 Datasheet

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 104mm. Holding Force 227daN.

Vertical Toggle Clamp. Overall Height 156mm. Overall Length 104mm. Holding Force 227daN.
