Item Code: GH-101-D

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 93mm. Holding Force 180daN.

Item Code: GH-101-D

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 93mm. Holding Force 180daN.

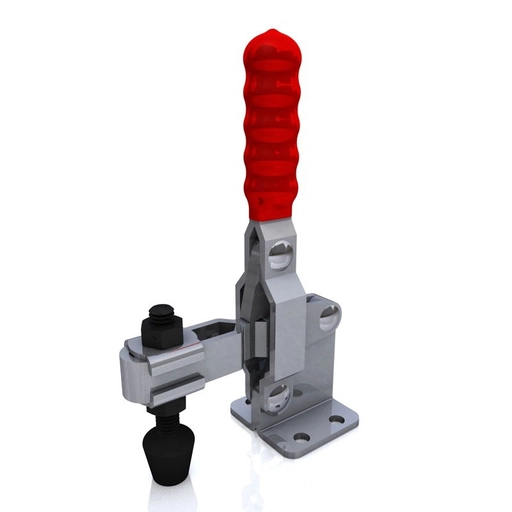

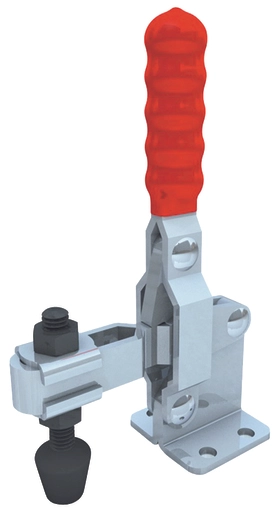

GH-101-D Vertical Toggle Clamp Flat Base Slotted Arm 180daN

Holding Force: 180daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.33Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-101-D Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
101-200kg
101-150mm
51-100mm
31-40mm
51-75mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.52  ea. Excl VAT £17.42  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.36 8%
30 - 49 £12.63 13%
50 + £12.05 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height31-40mm
Arm Length51-75mm
Spindle SizeM8
Download STP

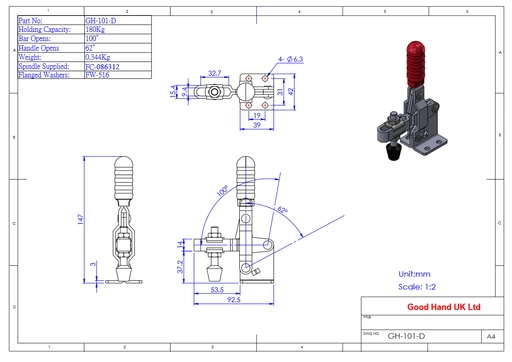

GH-101-D Datasheet
