Toggle Clamps
Back to Vertical Toggle Clamps

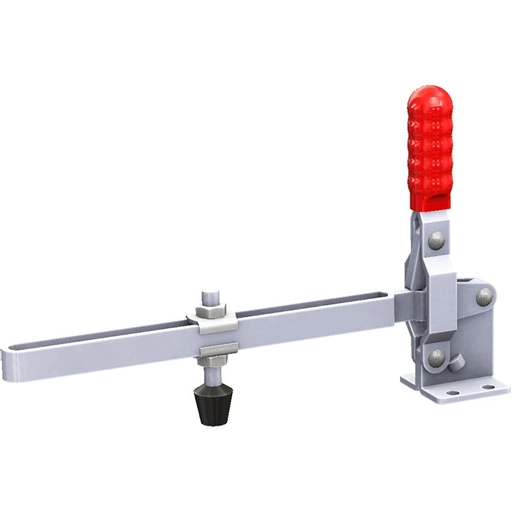

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 243mm. Holding Force 180daN.

Item Code: GH-10200-E

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 243mm. Holding Force 180daN.

Item Code: GH-10200-E

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 243mm. Holding Force 180daN.

GH-10200-E Vertical Toggle Clamp Flat Base Slotted Arm Size 180daN

Holding Force: 180daN
Arm Opens: 100°
Handle Opens: 62°
Weight: 0.44Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-10200-E Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

Dispatch by 16/06/25

£27.43 ea. Excl VAT £32.92 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£25.24	8%
30 - 49	£23.86	13%
50 +	£22.77	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

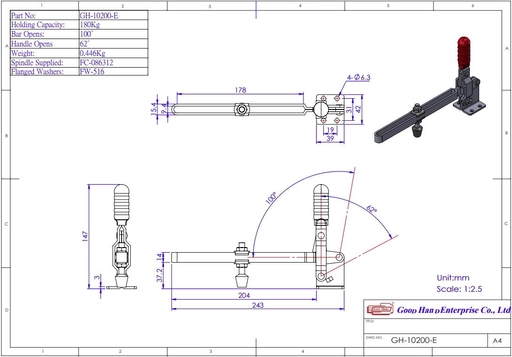

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	101-200kg
Height	101-150mm
Total Length	201-250mm
Underarm Height	31-40mm
Arm Length	101+mm
Spindle Size	M8

Downloads

Download STP

GH-10200-E Datasheet

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 243mm. Holding Force 180daN.

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 243mm. Holding Force 180daN.
