Item Code: GH-101-E

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 143mm. Holding Force 180daN.

Item Code: GH-101-E

Vertical Toggle Clamp. Overall Height 147mm. Overall Length 143mm. Holding Force 180daN.

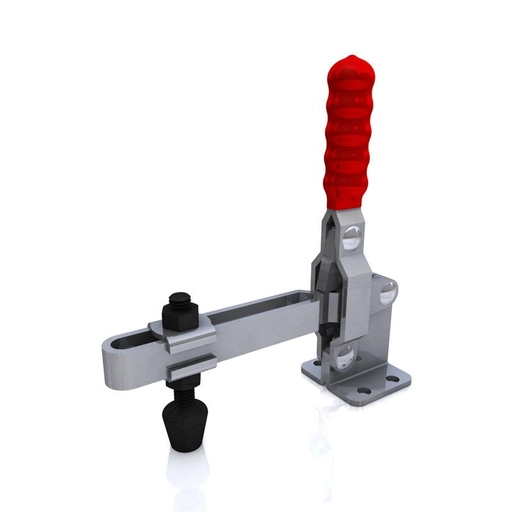

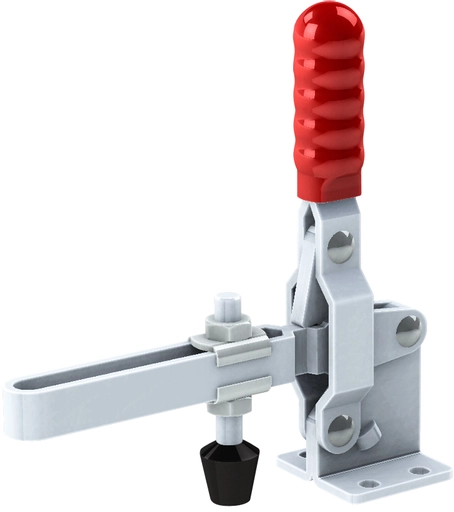

GH-101-E Vertical Toggle Clamp Flat Base Slotted Arm 180daN

Holding Force: 180daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.33Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-101-A Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
101-200kg
101-150mm
101-150mm
31-40mm
101+mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£15.06  ea. Excl VAT £18.07  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.86 8%
30 - 49 £13.10 13%
50 + £12.50 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force101-200kg
Height101-150mm
Total Length101-150mm
Underarm Height31-40mm
Arm Length101+mm
Spindle SizeM8
Download STP

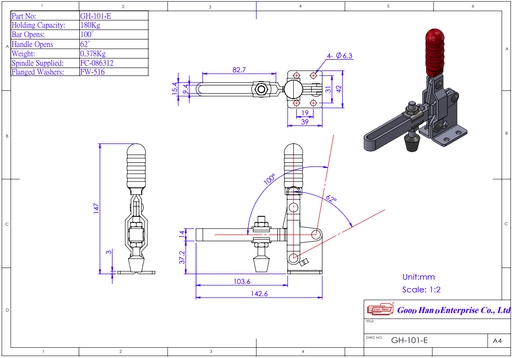

GH-101-E Datasheet
