Item Code: GH-12132

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 141mm. Holding Force 227daN.

Item Code: GH-12132

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 141mm. Holding Force 227daN.

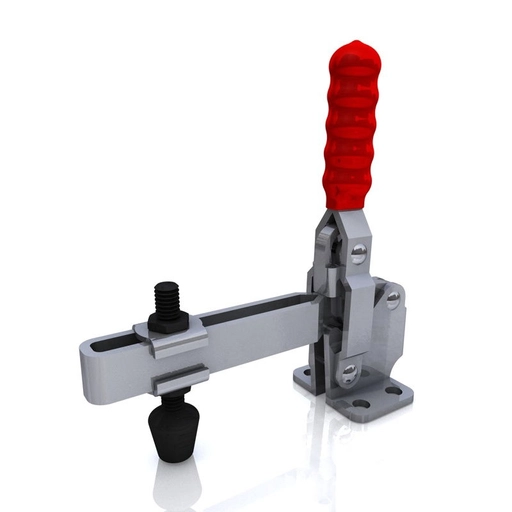

GH-12132 Vertical Toggle Clamp Flat Base Long Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.37Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12132 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

29 in stock

76-100mm
Adjustable
Flat
101-150mm
201-300Kg
M8
101-150mm
31-40mm

£15.69  ea. Excl VAT £18.83  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £14.43 8%
30 - 49 £13.65 13%
50 + £13.02 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length76-100mm
Arm TypeAdjustable
Base TypeFlat
Height101-150mm
Holding Force201-300Kg
Spindle SizeM8
Total Length101-150mm
Underarm Height31-40mm
Download STP

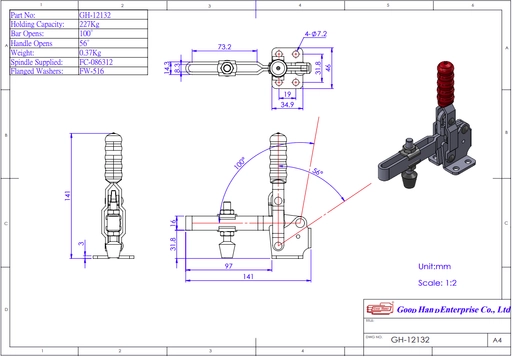

GH-12132 Datasheet
