Item Code: GH-12130

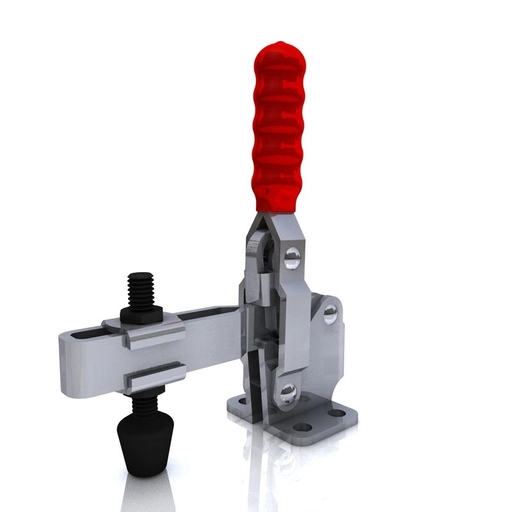

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12130

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

GH-12130 Vertical Toggle Clamp Flat Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.36Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12130 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
101-150mm
201-300Kg
M8
101-150mm
31-40mm

£14.11  ea. Excl VAT £16.93  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.98 8%
30 - 49 £12.28 13%
50 + £11.71 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height101-150mm
Holding Force201-300Kg
Spindle SizeM8
Total Length101-150mm
Underarm Height31-40mm
Download STP

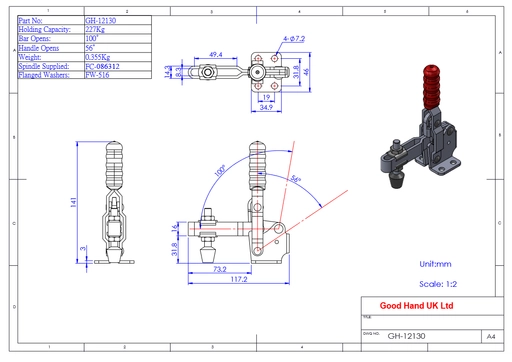

GH-12130 Datasheet
