Vertical Toggle Clamp. Overall Height 141mm. Overall Length 104mm. Holding Force 227daN.

Item Code: GH-12140

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 104mm. Holding Force 227daN.

Item Code: GH-12140

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 104mm. Holding Force 227daN.

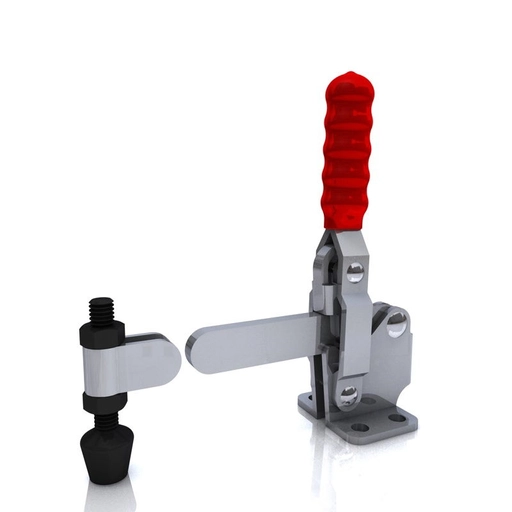

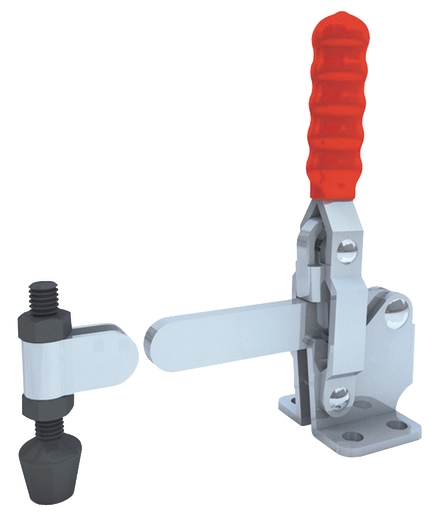

GH-12140 Vertical Toggle Clamp Flat Base Solid Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.34Kg
Spindle Supplied: FC-086312
Bolt Retainer Supplied: BR-516

What's In The Bag
GH-12140 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

44 in stock

£14.30 ea. Excl VAT £17.16 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£13.16	8%
30 - 49	£12.44	13%
50 +	£11.87	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

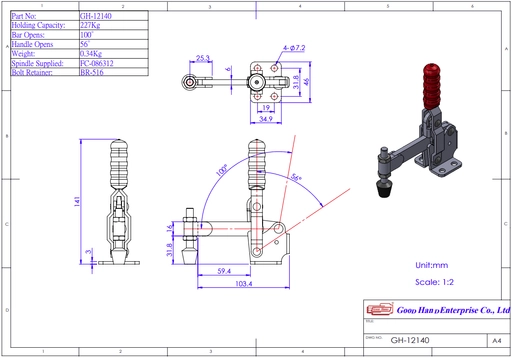

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Flat
Holding Force	201-300Kg
Height	101-150mm
Total Length	101-150mm
Underarm Height	31-40mm
Arm Length	101+mm
Spindle Size	M8

Downloads

Download STP

GH-12140 Datasheet

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 104mm. Holding Force 227daN.

Vertical Toggle Clamp. Overall Height 141mm. Overall Length 104mm. Holding Force 227daN.
