Item Code: GH-11501-B

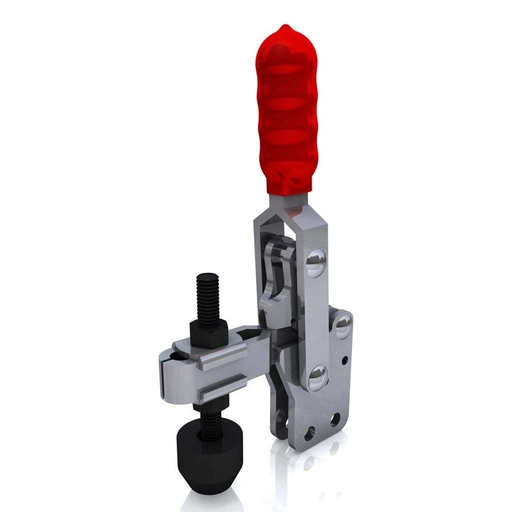

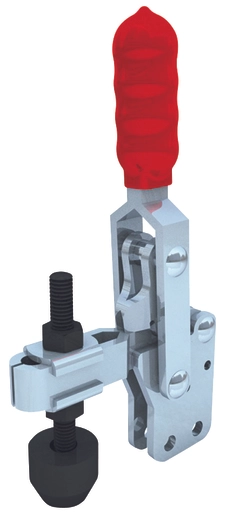

Vertical Toggle Clamp. Overall Height 136mm. Overall Length 70mm. Holding Force 150daN.

Item Code: GH-11501-B

Vertical Toggle Clamp. Overall Height 136mm. Overall Length 70mm. Holding Force 150daN.

GH-11501-B Vertical Toggle Clamp Straight Base Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 95-185°
Handle Opens: 75-110°
Weight: 0.15Kg
Spindle Supplied: SA-065010+NC-06 Cap
Flanged Washers Supplied: FW-140

What's In The Bag
GH-11501-B Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-140 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
101-200kg
101-150mm
51-100mm
31-40mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.50  ea. Excl VAT £15.00  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.50 8%
30 - 49 £10.87 13%
50 + £10.37 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height31-40mm
Arm Length26-50mm
Spindle SizeM6
Download STP

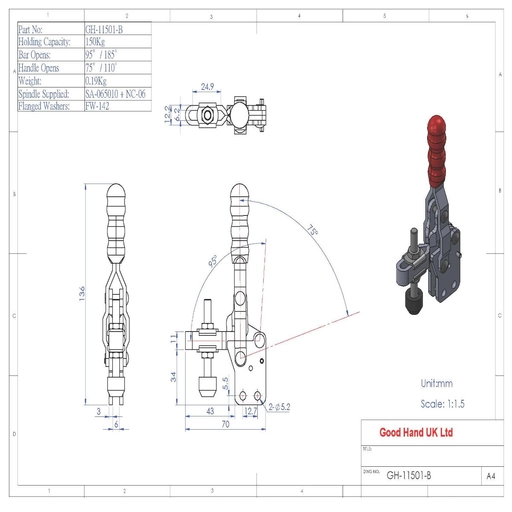

GH-11501-B Datasheet
