Item Code: GH-11501-C

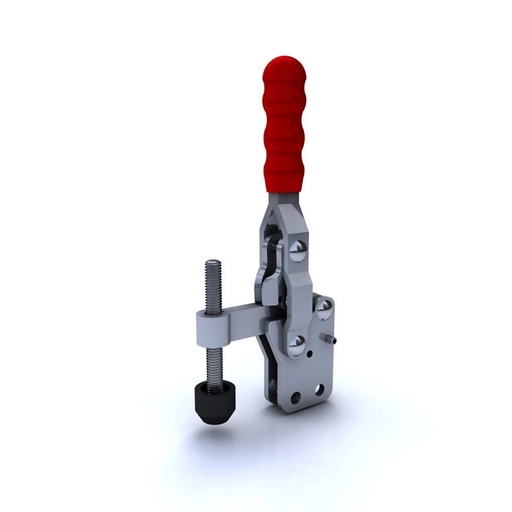

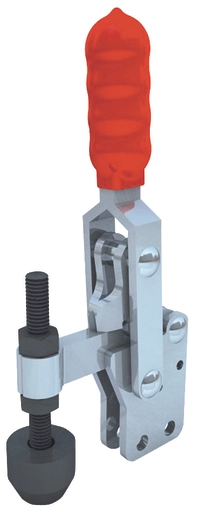

Vertical Toggle Clamp. Overall Height 136mm. Overall Length 60mm. Holding Force 150daN.

Item Code: GH-11501-C

Vertical Toggle Clamp. Overall Height 136mm. Overall Length 60mm. Holding Force 150daN.

GH-11501-C Vertical Toggle Clamp Straight Base Fixed Arm Size 150daN

Holding Force: 150daN
Arm Opens: 95/185°
Handle Opens: 75/110°
Weight: 0.186Kg
Spindle Supplied: SA-065010 + NC-06

What's In The Bag
GH-11501-C Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Fixed
Straight
101-200kg
101-150mm
51-100mm
31-40mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£18.42  ea. Excl VAT £22.10  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £16.95 8%
30 - 49 £16.03 13%
50 + £15.29 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeStraight
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height31-40mm
Arm Length26-50mm
Spindle SizeM6
Download STP
GH-11501-C Datasheet
