Item Code: GH-12002-B

Vertical Toggle Clamp. Overall Height 135mm. Overall Length 79mm. Holding Force 200daN

Item Code: GH-12002-B

Vertical Toggle Clamp. Overall Height 135mm. Overall Length 79mm. Holding Force 200daN

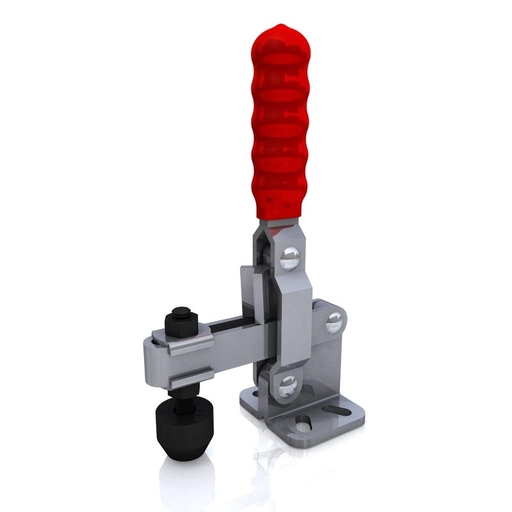

GH-12002-B Vertical Toggle Clamp Flat Base Slotted Arm Size 200daN

Holding Force 200daN
Arm Opens: 108°
Handle Opens: 70°
Weight: 0.17Kg
Spindle Supplied: SA-064010+NC-06 Cap
Flanged Washers Supplied: FW-140

What's In The Bag
GH-12002-B Toggle Clamp
SA-064010 M6x40mm Spindle With Nuts
FW-516 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Adjustable
Flat
101-200kg
101-150mm
51-100mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.90  ea. Excl VAT £17.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.71 8%
30 - 49 £12.96 13%
50 + £12.37 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP

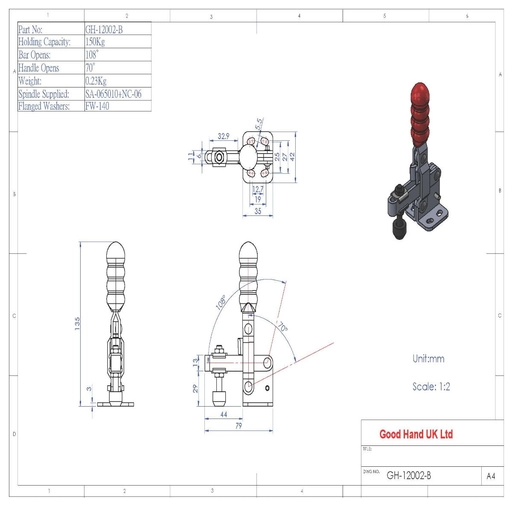

GH-12002-B Datasheet
