Item Code: GH-12002-C

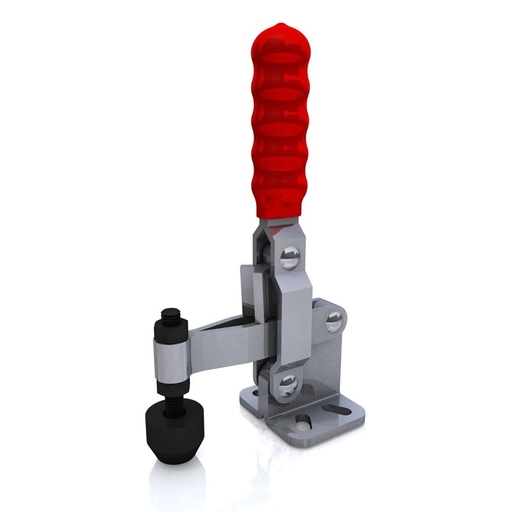

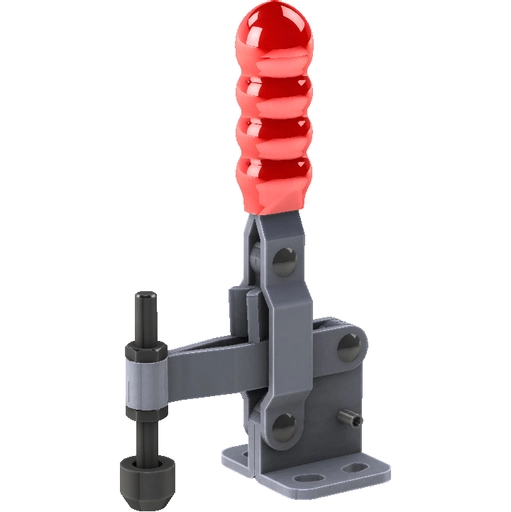

Vertical Toggle Clamp. Overall Height 135mm. Overall Length 76mm. Holding Force 200daN.

Item Code: GH-12002-C

Vertical Toggle Clamp. Overall Height 135mm. Overall Length 76mm. Holding Force 200daN.

GH-12002-C Vertical Toggle Clamp Flat Base Fixed Arm Size 200daN

Holding Force: 200daN
Arm Opens: 95°
Handle Opens: 65°
Weight: 0.2Kg
Spindle Supplied: SA-065010+NC-06 Cap

What's In The Bag
GH-12002-C Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Fixed
Flat
101-200kg
101-150mm
51-100mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£15.48  ea. Excl VAT £18.58  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £14.24 8%
30 - 49 £13.47 13%
50 + £12.85 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP

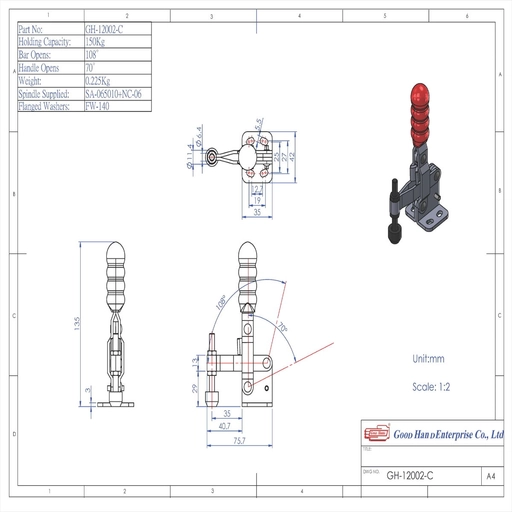

GH-12002-C Datasheet
