Home
Toggle Clamps
Back to Vertical Toggle Clamps

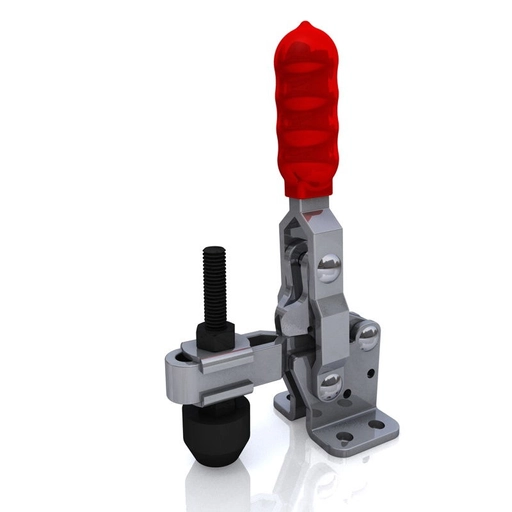

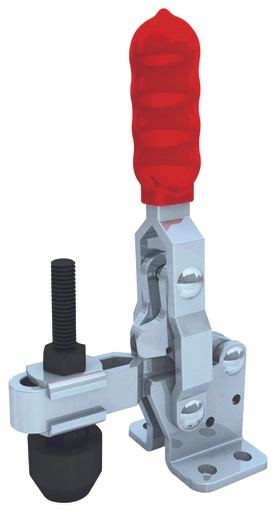

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

Item Code: GH-11502-B

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

GH-11502-B-Vertical-Toggle-Clamp_1200x1200.jpg?

GH-11502-B-150Kg-vertical-toggle-clamp-with-flat-base-and-slotted-arm_1200x1200.jpg?

Item Code: GH-11502-B

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

GH-11502-B Vertical Toggle Clamp Flat Base Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 185°
Handle Opens: 110°
Weight: 0.195Kg
Spindle Supplied: SA-065010+NC-06 Cap
Flanged Washers Supplied: FW-142

What's In The Bag
GH-11502-B Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-010 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

£12.50 ea. Excl VAT £15.00 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£11.50	8%
30 - 49	£10.87	13%
50 +	£10.37	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

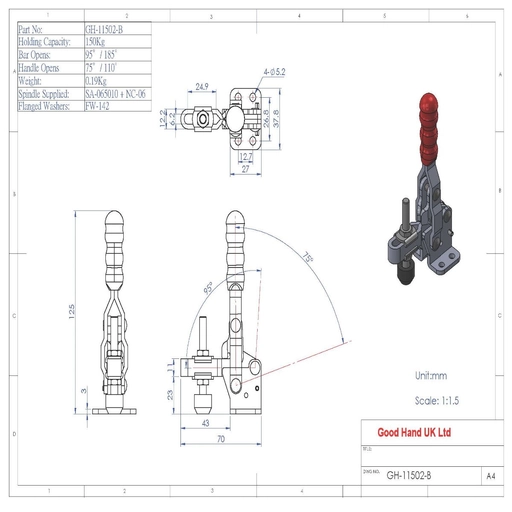

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	101-200kg
Height	101-150mm
Total Length	51-100mm
Underarm Height	21-30mm
Arm Length	26-50mm
Spindle Size	M6

Downloads

Download STP

GH-11502-B Datasheet

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.
