Item Code: GH-11502-C

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 60mm. Holding Force 150daN.

Item Code: GH-11502-C

Vertical Toggle Clamp. Overall Height 125mm. Overall Length 60mm. Holding Force 150daN.

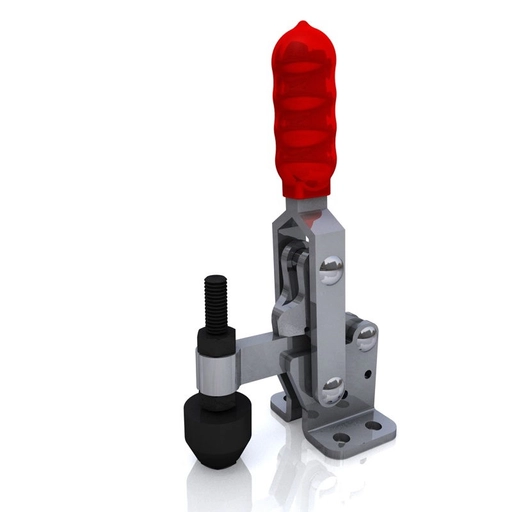

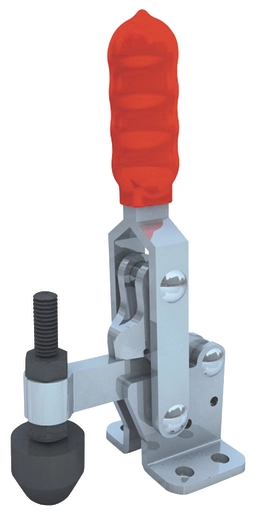

GH-11502-C Vertical Toggle Clamp Flat Base Fixed Arm Size 150daN

Holding Force: 150daN
Arm Opens: 95-185°
Handle Opens: 75-110°
Weight: 0.15Kg
Spindle Supplied: SA-065010+NC-06 Cap

What's In The Bag
GH-115022-C Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Fixed
Flat
101-200kg
101-150mm
51-100mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£13.26  ea. Excl VAT £15.91  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.20 8%
30 - 49 £11.54 13%
50 + £11.01 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force101-200kg
Height101-150mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP

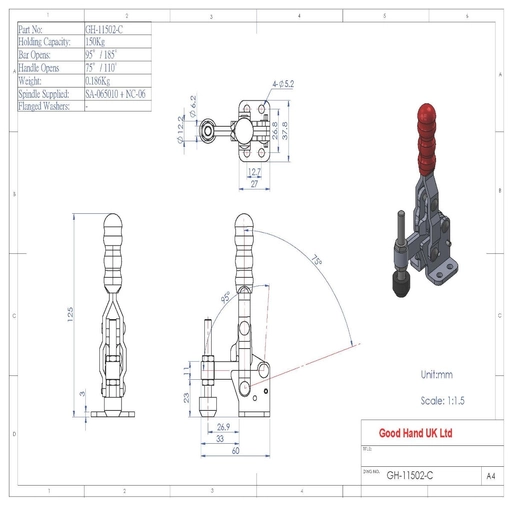

Gh-11502-C Datasheet
