Item Code: GH-12050-HB

Vertical Toggle Clamp. Overall Height 124mm. Overall Length 66mm. Holding Force 91daN.

Item Code: GH-12050-HB

Vertical Toggle Clamp. Overall Height 124mm. Overall Length 66mm. Holding Force 91daN.

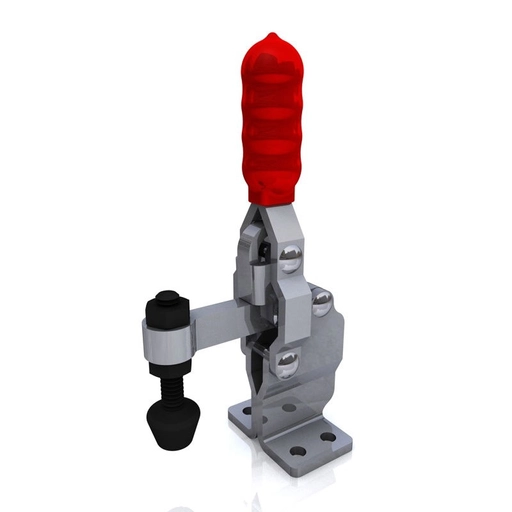

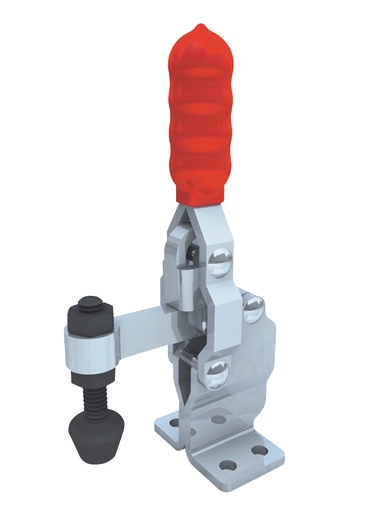

GH-12050-HB Vertical Toggle Clamp High Flat Base Fixed Arm Size 91daN

Holding Force: 91daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.186Kg
Spindle Supplied: FC-064410

What's In The Bag
GH-12050-HB Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

26-50mm
Fixed
Flat
101-150mm
0-100Kg
M6
51-100mm
41-50mm

£13.07  ea. Excl VAT £15.68  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.02 8%
30 - 49 £11.37 13%
50 + £10.85 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length26-50mm
Arm TypeFixed
Base TypeFlat
Height101-150mm
Holding Force0-100Kg
Spindle SizeM6
Total Length51-100mm
Underarm Height41-50mm
Download STP

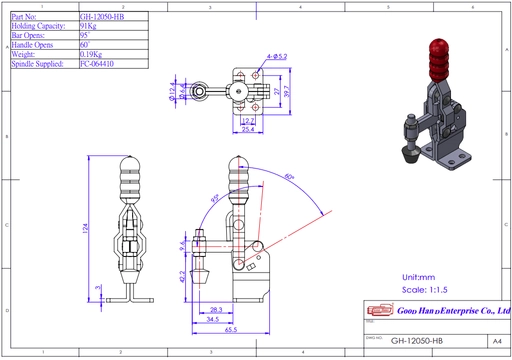

GH-12050-HB Datasheet
