Item Code: GH-11003-C

Vertical Toggle Clamp. Overall Height 121mm. Overall Length 66mm. Holding Force 100daN.

Item Code: GH-11003-C

Vertical Toggle Clamp. Overall Height 121mm. Overall Length 66mm. Holding Force 100daN.

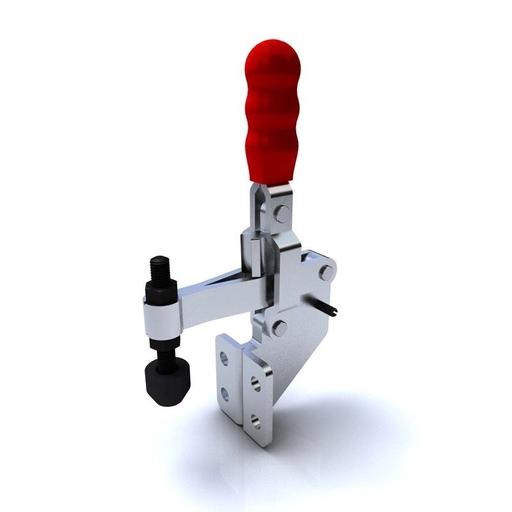

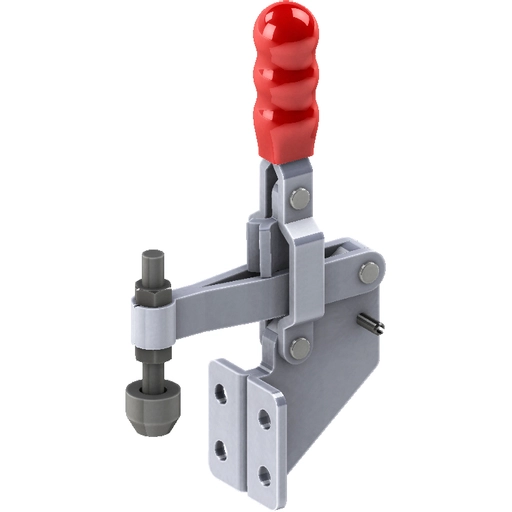

GH-11003-C Vertical Toggle Clamp with Side Mounting Base and Fixed Arm Size 100daN

Holding Force: 100daN
Arm Opens: 96°
Handle Opens: 69°
Weight: 0.14Kg
Spindle Supplied: SA-054008 + NC-05 Cap

What's In The Bag
GH-11003-C Toggle Clamp
SA-054008 M5x40mm Spindle With Nuts
NC-05 Neoprene Cap
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

1 in stock

Fixed
Side Mounted
0-100Kg
101-150mm
51-100mm
41-50mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.46  ea. Excl VAT £17.35  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.30 8%
30 - 49 £12.58 13%
50 + £12.00 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeSide Mounted
Holding Force0-100Kg
Height101-150mm
Total Length51-100mm
Underarm Height41-50mm
Arm Length26-50mm
Spindle SizeM5
Download STP

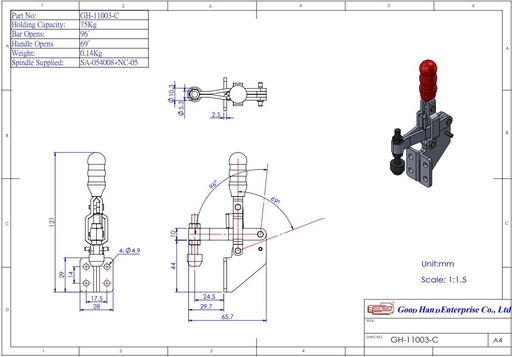

GH-11003-C Datasheet
