Item Code: GH-101-B

Vertical Toggle Clamp. Overall Height 117mm. Overall Length 69mm. Holding Force 100daN.

Item Code: GH-101-B

Vertical Toggle Clamp. Overall Height 117mm. Overall Length 69mm. Holding Force 100daN.

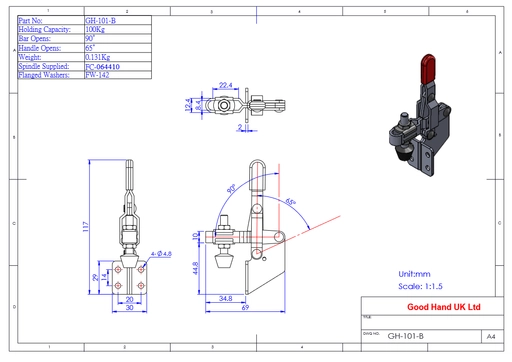

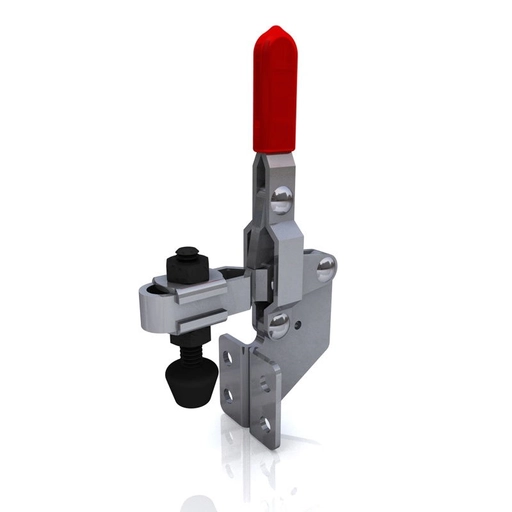

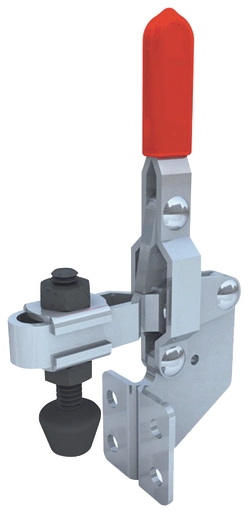

GH-101-B Vertical Toggle Clamp with Side Mounting and Slotted Arm Size 100daN

Holding Force: 100daN
Arm Opens: 90°
Handle Opens: 65°
Weight: 0.14Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-142

What's In The Bag
GH-101-B Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-142 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

34 in stock

Adjustable
Side Mounted
0-100Kg
101-150mm
51-100mm
41-50mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£11.38  ea. Excl VAT £13.66  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.47 8%
30 - 49 £9.90 13%
50 + £9.45 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeSide Mounted
Holding Force0-100Kg
Height101-150mm
Total Length51-100mm
Underarm Height41-50mm
Arm Length26-50mm
Spindle SizeM6
Download STP
GH-101-B Datasheet
