Vertical Toggle Clamp. Overall Height 116mm. Overall Length 97mm. Holding Force 150daN.

Item Code: GH-13007-SM

Vertical Toggle Clamp. Overall Height 116mm. Overall Length 97mm. Holding Force 150daN.

Item Code: GH-13007-SM

Vertical Toggle Clamp. Overall Height 116mm. Overall Length 97mm. Holding Force 150daN.

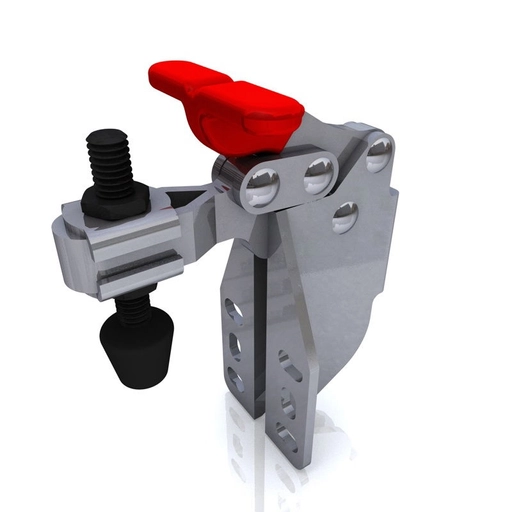

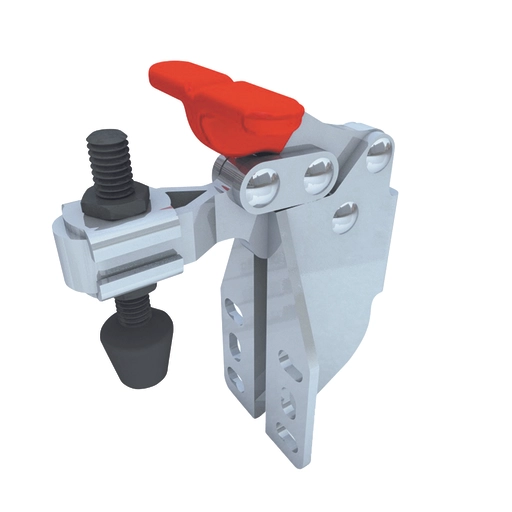

GH-13007-SM Vertical Toggle Clamp with Side Mounting and Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 90°
Handle Opens: 170°
Weight: 0.36Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-13007-SM Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

12 in stock

£15.17 ea. Excl VAT £18.20 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£13.96	8%
30 - 49	£13.20	13%
50 +	£12.59	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Side Mounted
Holding Force	101-200kg
Height	101-150mm
Total Length	51-100mm
Underarm Height	51+mm
Arm Length	51-75mm
Spindle Size	M8

Downloads

Download STP

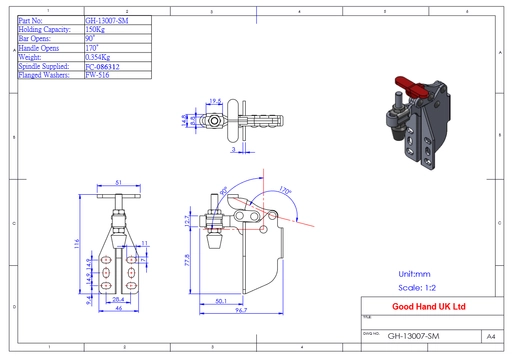

Gh-13007-SM Datasheet
