Item Code: GH-12055-U

Vertical Toggle Clamp. Overall Height 116mm. Overall Length 65mm. Holding Force 91daN.

Item Code: GH-12055-U

Vertical Toggle Clamp. Overall Height 116mm. Overall Length 65mm. Holding Force 91daN.

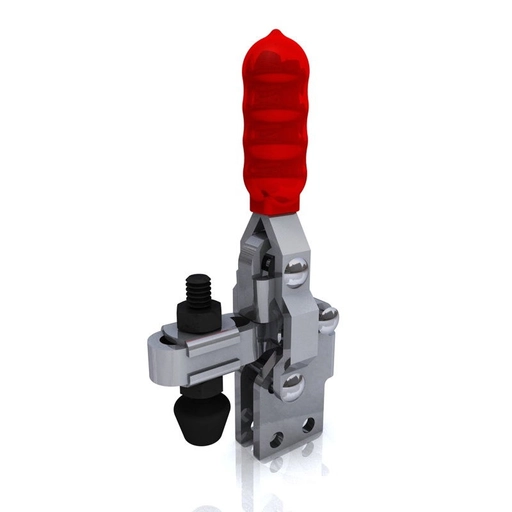

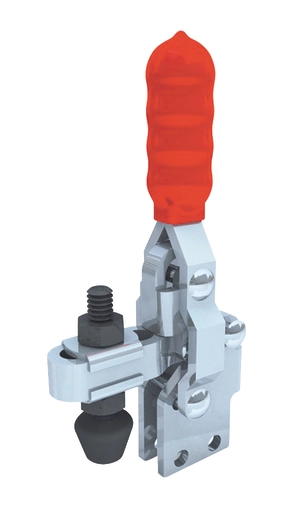

GH-12055-U Vertical Toggle Clamp Straight Base Slotted Arm Size 91daN

Holding Force: 91daN
Arm Opens: 95°
Handle Opens: 60°
Weight: 0.17Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-142

What's In The Bag
GH-12055-U Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-142 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

18 in stock

Adjustable
Straight
0-100Kg
101-150mm
51-100mm
31-40mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.27  ea. Excl VAT £14.72  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.29 8%
30 - 49 £10.67 13%
50 + £10.18 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force0-100Kg
Height101-150mm
Total Length51-100mm
Underarm Height31-40mm
Arm Length26-50mm
Spindle SizeM6
Download STP

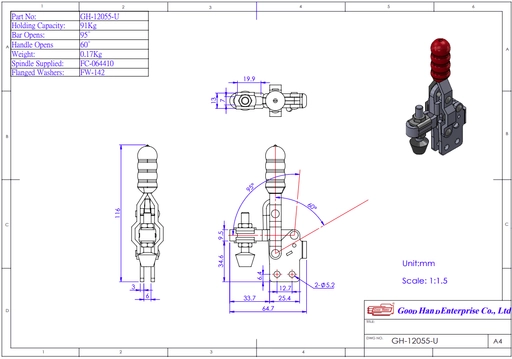

GH-12055-U Datasheet
