Item Code: GH-11401

Vertical Toggle Clamp. Overall Height 111mm. Overall Length 71mm. Holding Force 100daN.

Item Code: GH-11401

Vertical Toggle Clamp. Overall Height 111mm. Overall Length 71mm. Holding Force 100daN.

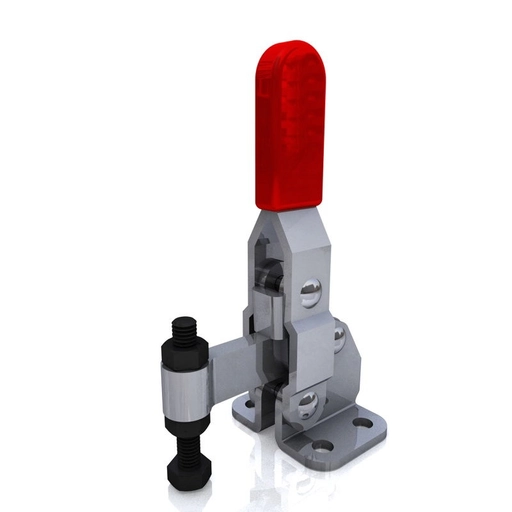

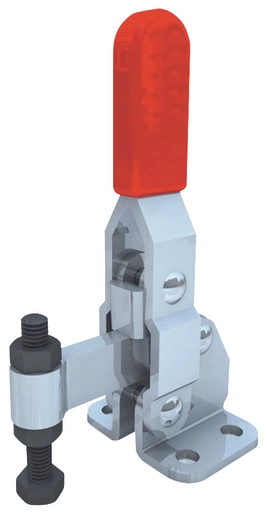

GH-11401 Vertical Toggle Clamp Flat Base Fixed Arm Size 100daN

Holding Force: 100daN
Arm Opens: 95°
Handle Opens: 65°
Weight: 0.2Kg
Spindle Supplied: SA-064010

What's In The Bag
GH-11401 Toggle Clamp
SA-064010 M6x40mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

10 in stock

Fixed
Flat
0-100Kg
101-150mm
51-100mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.86  ea. Excl VAT £15.43  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.83 8%
30 - 49 £11.19 13%
50 + £10.67 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force0-100Kg
Height101-150mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP

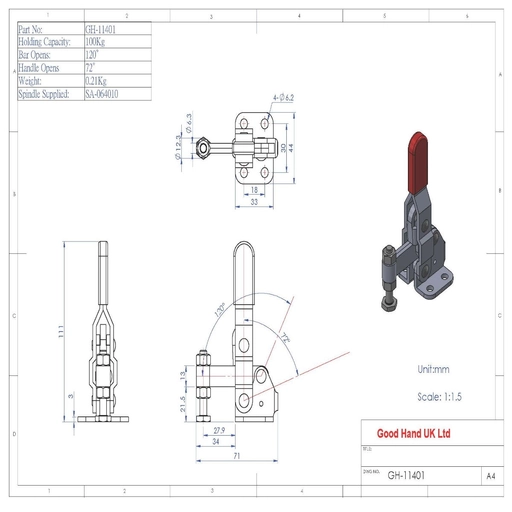

GH-11401 Datasheet
