Item Code: GH-12131

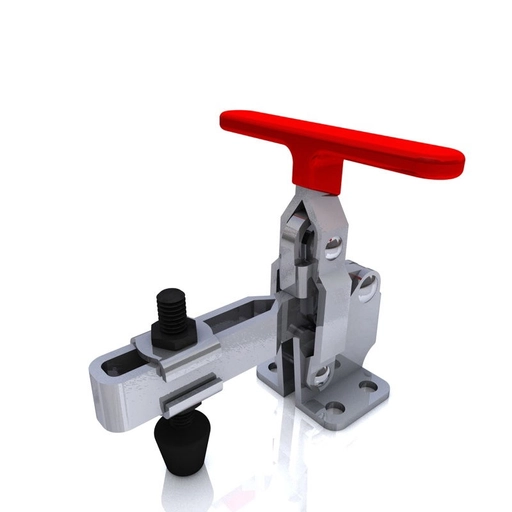

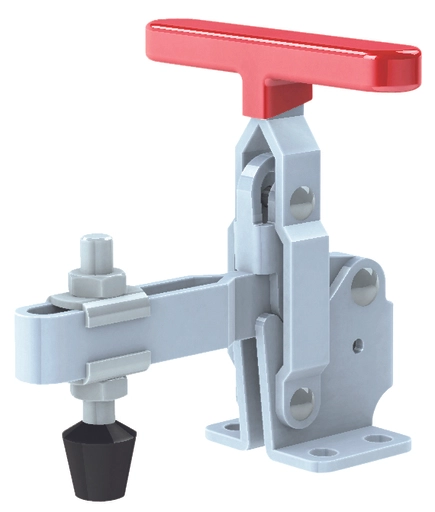

Vertical Toggle Clamp. Overall Height 106mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12131

Vertical Toggle Clamp. Overall Height 106mm. Overall Length 118mm. Holding Force 227daN.

GH-12131 Vertical Clamp with Low Profile, Flat Base and Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.37Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-12131 Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
201-300Kg
101-150mm
101-150mm
31-40mm
51-75mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£15.33  ea. Excl VAT £18.40  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £14.10 8%
30 - 49 £13.34 13%
50 + £12.72 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force201-300Kg
Height101-150mm
Total Length101-150mm
Underarm Height31-40mm
Arm Length51-75mm
Spindle SizeM8
Download STP

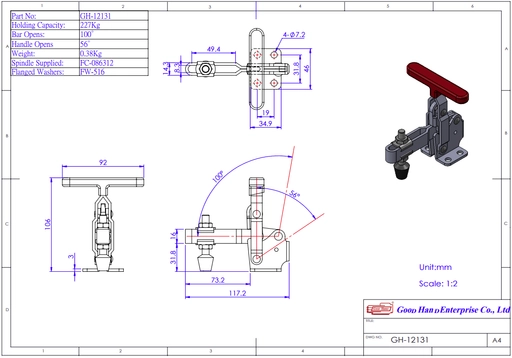

GH-12131 Datasheet
