Item Code: GH-12050-UL

Vertical Toggle Clamp. Overall Height 104mm. Overall Length 89mm. Holding Force 91daN.

Item Code: GH-12050-UL

Vertical Toggle Clamp. Overall Height 104mm. Overall Length 89mm. Holding Force 91daN.

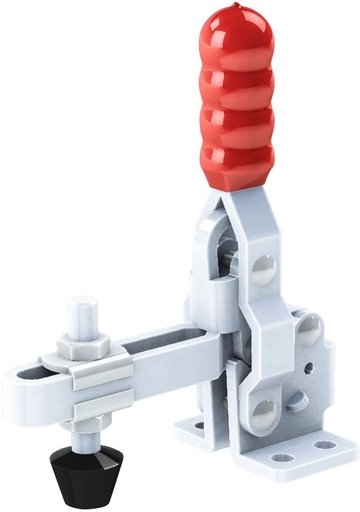

GH-12050-UL Vertical Toggle Clamp Flat Base Long Slotted Arm Size 91daN

Holding Force: 91daN
Arm Opens: 95°
Handle Opens: 60°
Weight: 0.17Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-12050-UL Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

4 in stock

Adjustable
Flat
0-100Kg
101-150mm
51-100mm
21-30mm
51-75mm
M6

£18.91  ea. Excl VAT £22.69  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £17.40 8%
30 - 49 £16.45 13%
50 + £15.70 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height101-150mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length51-75mm
Spindle SizeM6

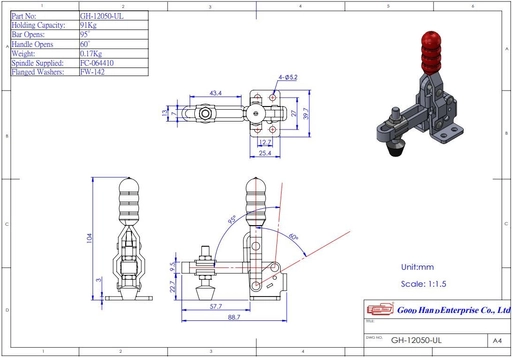

Download STP
