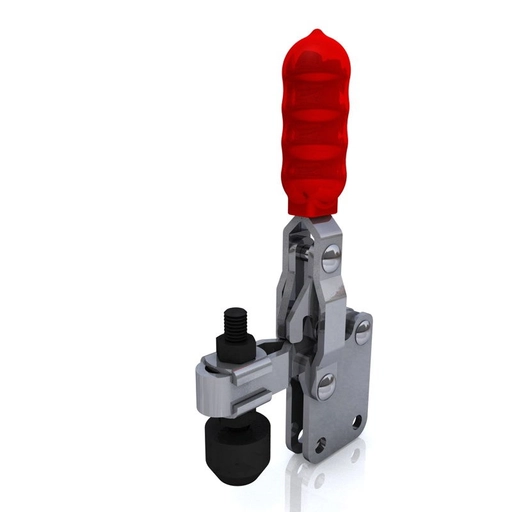

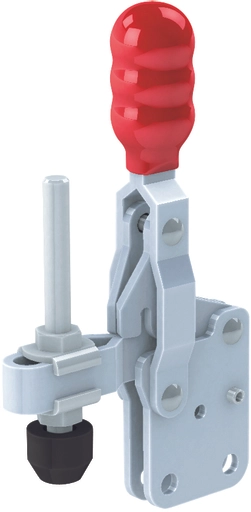

Vertical Toggle Clamp. Overall Height 100mm. Overall Length 57mm. Holding Force 75daN.

Item Code: GH-10751-B

Vertical Toggle Clamp. Overall Height 100mm. Overall Length 57mm. Holding Force 75daN.

GH-10751-B-Straight-Base-Vertical-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-10751-B

Vertical Toggle Clamp. Overall Height 100mm. Overall Length 57mm. Holding Force 75daN.

GH-10751-B Vertical Toggle Clamp Straight Base Slotted Arm Size 75daN

Holding Force: 75daN
Arm Opens: 130-195°
Handle Opens: 90-125°
Weight: 0.091Kg
Spindle Supplied: SA-055008+NC-05 Cap
Flanged Washers Supplied: FW-100

What's In The Bag
GH-13007 Toggle Clamp
SA-055008 M5x50mm Spindle With Nuts
FW-100 Flanged Washers
NC-05 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

£12.23 ea. Excl VAT £14.68 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£11.25	8%
30 - 49	£10.64	13%
50 +	£10.15	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Straight
Holding Force	0-100Kg
Height	51-100mm
Total Length	51-100mm
Underarm Height	21-30mm
Arm Length	26-50mm
Spindle Size	M5

Downloads

Download STP

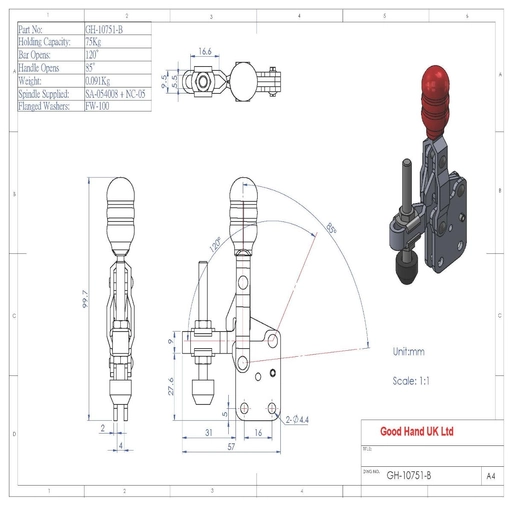

GH-10751-B Datasheet
