Item Code: GH-12130-RSS

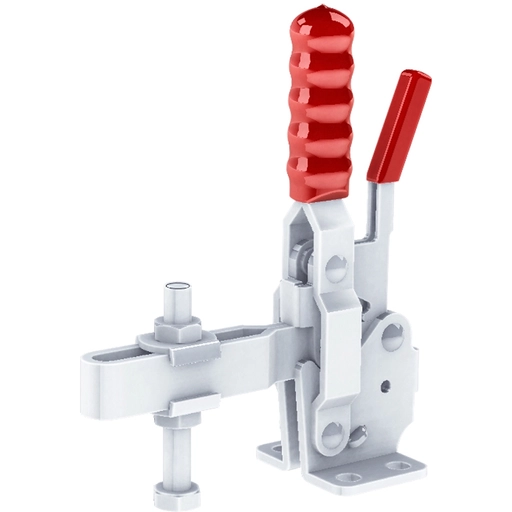

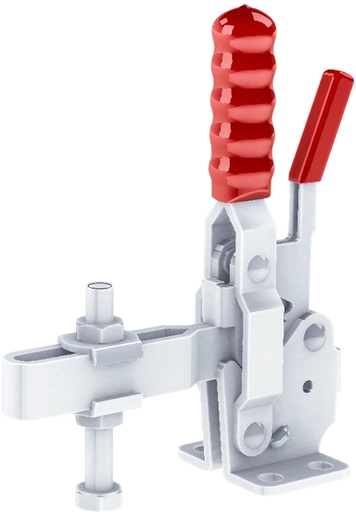

Stainless Steel Vertical Toggle Clamp With Safety Lock. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12130-RSS

Stainless Steel Vertical Toggle Clamp With Safety Lock. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

GH-12130-RSS Stainless Steel Vertical Toggle Clamp With Safety Lock Flat Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 56°
Weight: 0.36Kg
Spindle Supplied: FC-086312-SS
Flanged Washers Supplied: FW-516-SS
Safety Lock

What's In The Bag
GH-12130-RSS Toggle Clamp
FC-086312-SS M8x63mm Stainless Steel Spindle With Nuts
FW-516-SS Stainless Steel Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
101-150mm
201-300Kg
Yes
M8
Yes
101-150mm
31-40mm

£54.79  ea. Excl VAT £65.75  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length 51-75mm
Arm Type Adjustable
Base Type Flat
Height 101-150mm
Holding Force 201-300Kg
Safety Lock Yes
Spindle Size M8
Stainless Steel Yes
Total Length 101-150mm
Underarm Height 31-40mm

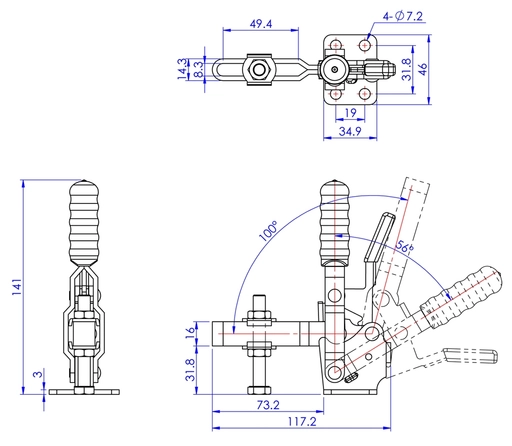

Download STP
GH-12130-RSS Datasheet
