Toggle Clamps
Back to Vertical Toggle Clamps
Stainless Steel Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

Item Code: GH-10752-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

GH-10752-BSS-Stainless-Steel-Vertical-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-10752-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

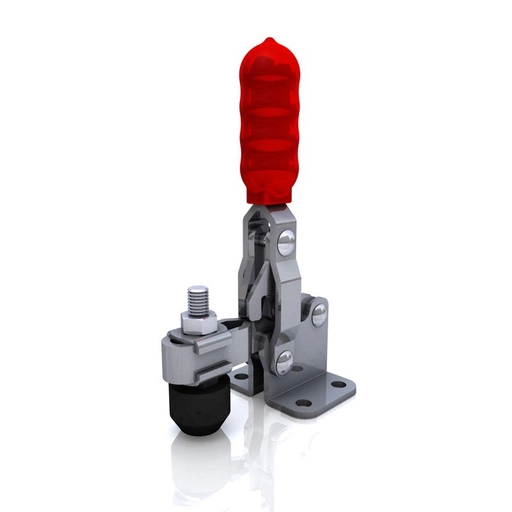

GH-10752-BSS Stainless Steel Vertical Toggle Clamp with Flat Base Size 75daN

Holding Force: 75daN
Arm Opens: 130-195°
Handle Opens: 90-125°
Weight: 0.05Kg
Spindle Supplied: SA-054008-SS+NC-05 Cap
Flanged Washers Supplied: FW-100-SS

What's In The Bag
GH-10752-BSS Toggle Clamp
SA-054008-SS M5x40mm Stainless Spindle With Nuts
FW-100-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

Dispatch by 15/07/25

Arm Length: 26-50mm

Arm Type: Adjustable

Base Type: Flat

Height: 51-100mm

Holding Force: 0-100Kg

Spindle Size: M5

Stainless Steel: Yes

Total Length: 0-50mm

Underarm Height: 0-20mm

M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8

M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8 - £2.02
M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8

M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8

M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £4.49
M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts - £2.55
M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts

M5 Neoprene Pad - £2.60
M5 Neoprene Pad

Neoprene Cap For M5 Spindles - £0.76
Neoprene Cap For M5 Spindles

Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles - £1.19
Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

£29.19 ea. Excl VAT £35.03 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£26.85	8%
30 - 49	£25.40	13%
50 +	£24.23	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8

M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8 - £2.02
M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8

M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8

M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £4.49
M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts - £2.55
M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts

M5 Neoprene Pad - £2.60
M5 Neoprene Pad

Neoprene Cap For M5 Spindles - £0.76
Neoprene Cap For M5 Spindles

Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles - £1.19
Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

Quick Links

Product Dimensions

Specifications

Arm Length	26-50mm
Arm Type	Adjustable
Base Type	Flat
Height	51-100mm
Holding Force	0-100Kg
Spindle Size	M5
Stainless Steel	Yes
Total Length	0-50mm
Underarm Height	0-20mm

Downloads

Download STP

GH-10752-BSS Datasheet

Stainless Steel Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

Stainless Steel Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.
