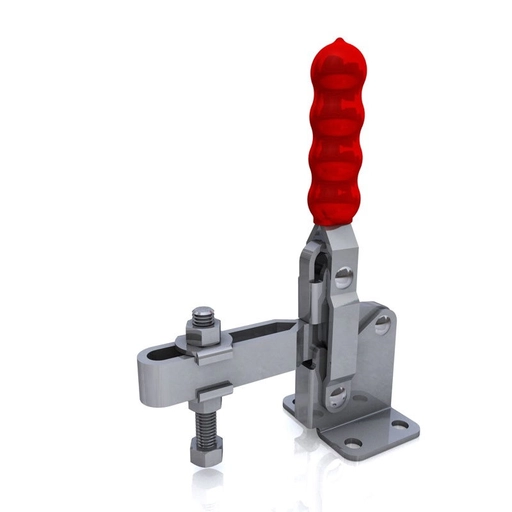

Stainless Steel Vertical Toggle Clamp. Overall Height 206mm. Overall Length 140mm. Holding Force 340daN.

Item Code: GH-12265-SS

Stainless Steel Vertical Toggle Clamp. Overall Height 206mm. Overall Length 140mm. Holding Force 340daN.

GH-12265-SS-stainless-steel-vertical-flat-base-toggle-clamp-340Kg_1200x1200.png?

Item Code: GH-12265-SS

Stainless Steel Vertical Toggle Clamp. Overall Height 206mm. Overall Length 140mm. Holding Force 340daN.

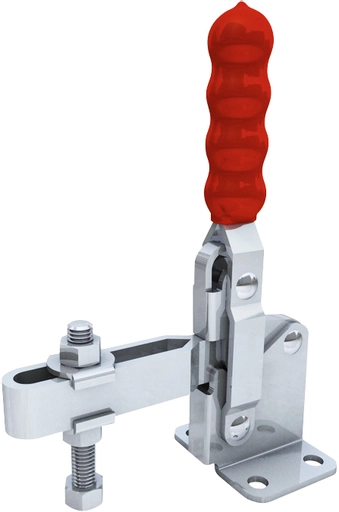

GH-12265-SS Stainless Steel Vertical Toggle Clamp with Flat Base Size 340daN

Holding Force: 340daN
Arm Opens: 105°
Handle Opens: 58°
Weight: 0.62Kg
Spindle Supplied: SA-107515-SS
Flanged Washers Supplied: FW-380-SS

What's In The Bag
GH-12265-SS Toggle Clamp
SA-107515-SS M10x75mm Stainless Spindle With Nuts
FW-380-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

29 in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 301-400kg

Height: 201-250mm

Total Length: 101-150mm

Underarm Height: 41-50mm

Arm Length: 76-100mm

Spindle Size: M10

Stainless Steel: Yes

M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5 - £3.78
M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5 - £3.78
M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £7.25
M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles

Qty

£37.36 ea. Excl VAT £44.83 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£34.37	8%
30 - 49	£32.50	13%
50 +	£31.01	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5 - £3.78
M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5 - £3.78
M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £7.25
M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles

Qty

Quick Links

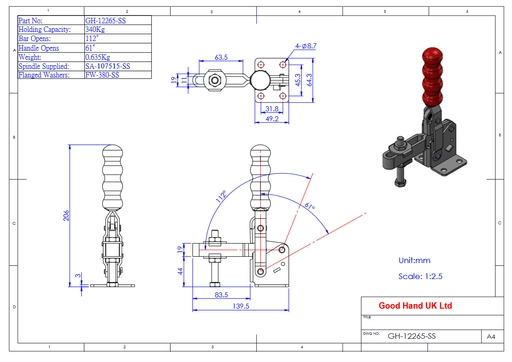

Product Dimensions
