Stainless Steel Vertical Toggle Clamp. Overall Height 178mm. Overall Length 111mm. Holding Force 250daN.

Item Code: GH-12502-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 178mm. Overall Length 111mm. Holding Force 250daN.

GH-12502-BSS-Stainless-Steel-Flat-Base-Vertical-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-12502-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 178mm. Overall Length 111mm. Holding Force 250daN.

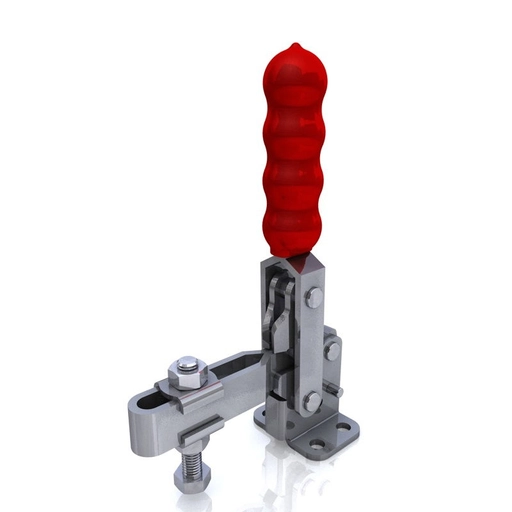

GH-12502-BSS Stainless Steel Vertical Toggle Clamp with Flat Base Size 250daN

Holding Force: 250daN
Arm Opens: 90-150°
Handle Opens: 70-100°
Weight: 0.38Kg
Spindle Supplied: SA-085012-SS
Flanged Washers Supplied: FW-516-SS

What's In The Bag
GH-12502-BSS Toggle Clamp
SA-085012-SS M8x50mm Stainless Spindle With Nuts
FW-516-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 201-300Kg

Height: 151-200mm

Total Length: 101-150mm

Underarm Height: 31-40mm

Arm Length: 76-100mm

Spindle Size: M8

Stainless Steel: Yes

M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £6.32
M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts - £3.54
M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M8 Neoprene Pad With Threaded Insert - £3.23
M8 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M8 Spindles - £1.02
Neoprene Cap For M8 Spindles

Qty

Side Mount Bracket For Toggle Clamps Medium - £6.04
Side Mount Bracket For Toggle Clamps Medium

Qty

Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles

Qty

£40.17 ea. Excl VAT £48.20 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£36.96	8%
30 - 49	£34.95	13%
50 +	£33.34	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £6.32
M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts - £3.54
M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M8 Neoprene Pad With Threaded Insert - £3.23
M8 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M8 Spindles - £1.02
Neoprene Cap For M8 Spindles

Qty

Side Mount Bracket For Toggle Clamps Medium - £6.04
Side Mount Bracket For Toggle Clamps Medium

Qty

Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles

Qty

Quick Links

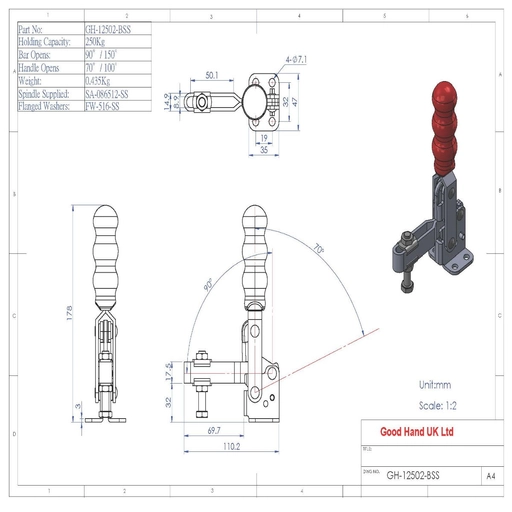

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	201-300Kg
Height	151-200mm
Total Length	101-150mm
Underarm Height	31-40mm
Arm Length	76-100mm
Spindle Size	M8
Stainless Steel	Yes

Downloads

Download STP

GH-12502-BSS Datasheet

Stainless Steel Vertical Toggle Clamp. Overall Height 178mm. Overall Length 111mm. Holding Force 250daN.

Stainless Steel Vertical Toggle Clamp. Overall Height 178mm. Overall Length 111mm. Holding Force 250daN.
