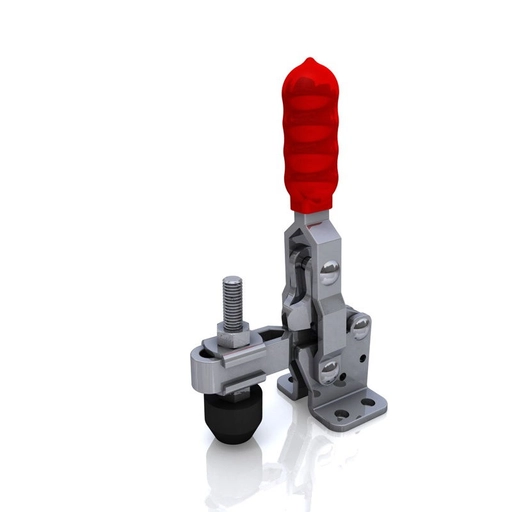

Stainless Steel Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

Item Code: GH-11502-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

GH-11502-BSS-Stainless-Steel-Flat-Base-Vertical-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-11502-BSS

Stainless Steel Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

GH-11502-BSS Stainless Steel Vertical Toggle Clamp with Flat Base Size 150daN

Holding Force: 150daN
Arm Opens: 185°
Handle Opens: 110°
Weight: 0.195Kg
Spindle Supplied: SA-065010-SS+NC-06 Cap
Flanged Washers Supplied: FW-140-SS

What's In The Bag
GH-11502-BSS Toggle Clamp
SA-065010-SS M6x50mm Stainless Spindle With Nuts
FW-140-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

20 in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 101-200kg

Height: 101-150mm

Total Length: 51-100mm

Underarm Height: 21-30mm

Arm Length: 26-50mm

Spindle Size: M6

Stainless Steel: Yes

M6 x 40mm Stainless Steel Spindle 2 Nuts Pitch 1.0 - £2.36
M6 x 40mm Stainless Steel Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.0 - £2.36
M6 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £5.18
M6 x 50mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

Qty

Pair Of Stainless Steel Flanged Washer For 6mm & 1/4" Spindles - £1.67
Pair Of Stainless Steel Flanged Washer For 6mm & 1/4" Spindles

Qty

£32.14 ea. Excl VAT £38.57 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£29.57	8%
30 - 49	£27.96	13%
50 +	£26.68	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M6 x 40mm Stainless Steel Spindle 2 Nuts Pitch 1.0 - £2.36
M6 x 40mm Stainless Steel Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.0 - £2.36
M6 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £5.18
M6 x 50mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

Qty

Pair Of Stainless Steel Flanged Washer For 6mm & 1/4" Spindles - £1.67
Pair Of Stainless Steel Flanged Washer For 6mm & 1/4" Spindles

Qty

Quick Links

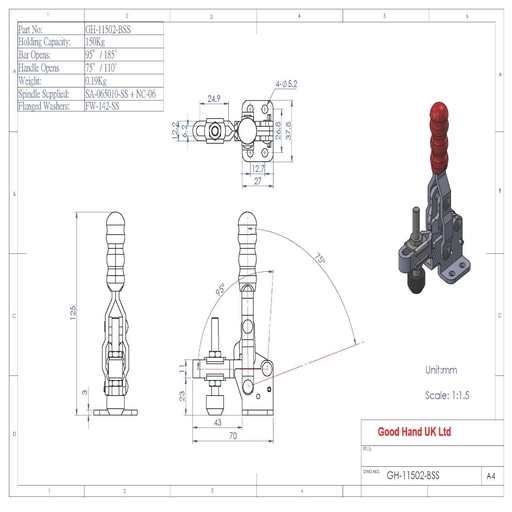

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	101-200kg
Height	101-150mm
Total Length	51-100mm
Underarm Height	21-30mm
Arm Length	26-50mm
Spindle Size	M6
Stainless Steel	Yes

Downloads

Download STP

GH-11502-BSS Datasheet
