Item Code: GH-12050-USS

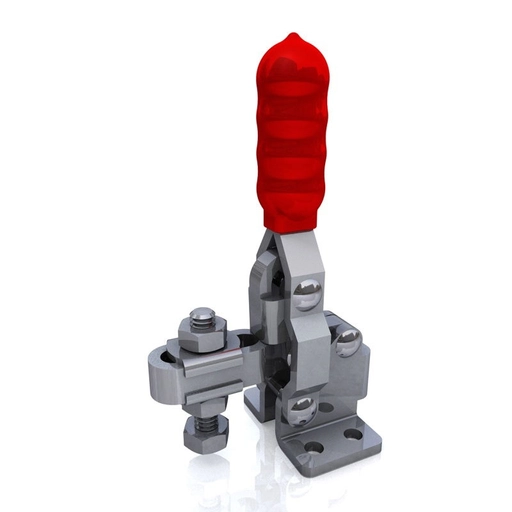

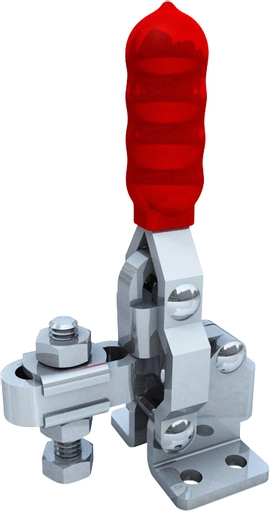

Stainless Steel Vertical Toggle Clamp. Overall Height 104mm. Overall Length 65mm. Holding Force 91daN.

Stainless Steel Vertical Toggle Clamp. Overall Height 104mm. Overall Length 65mm. Holding Force 91daN.

Item Code: GH-12050-USS

Stainless Steel Vertical Toggle Clamp. Overall Height 104mm. Overall Length 65mm. Holding Force 91daN.

GH-12050-USS Stainless Steel Vertical Toggle Clamp Flat Base Size 91daN

Holding Force: 91daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.17Kg
Spindle Supplied: SA-064010-SS
Flanged Washers Supplied: FW-142

What's In The Bag
GH-12050-USS Toggle Clamp
SA-064010-SS M6x40mm Stainless Spindle With Nuts
FW-142 Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

Dispatch by 13/10/25

26-50mm
Adjustable
Flat
101-150mm
0-100Kg
M6
Yes
51-100mm
21-30mm

£22.44  ea. Excl VAT £26.93  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length 26-50mm
Arm Type Adjustable
Base Type Flat
Height 101-150mm
Holding Force 0-100Kg
Spindle Size M6
Stainless Steel Yes
Total Length 51-100mm
Underarm Height 21-30mm
Download STP

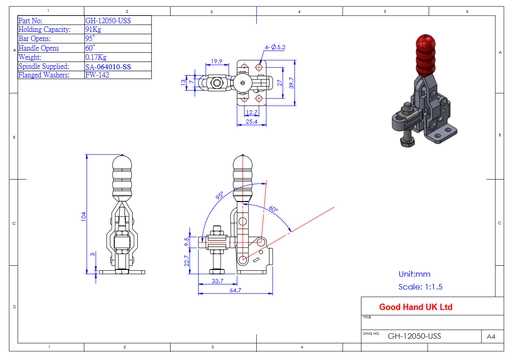

GH-12050-USS Datasheet
