Item Code: GH-11502-BB

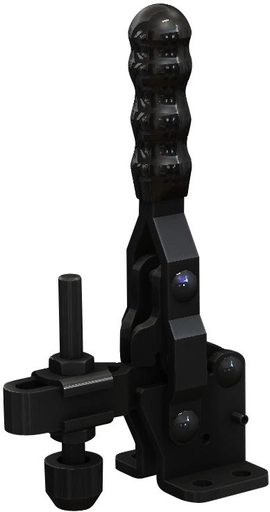

Blackodised Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

Item Code: GH-11502-BB

Blackodised Vertical Toggle Clamp. Overall Height 125mm. Overall Length 70mm. Holding Force 150daN.

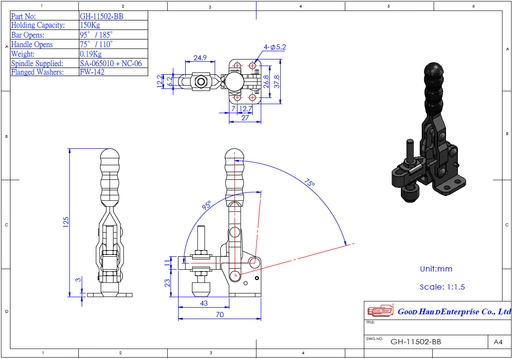

GH-11502-BB Black Vertical Toggle Clamp Flat Base Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 95° / 185
Handle Opens: 75 / 110°
Weight: 0.19Kg
Spindle Supplied: SA-065010+NC-06 Cap
Flanged Washers Supplied: FW-142

What's In The Bag
GH-11502-BB Blackodised Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-142 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

26-50mm
Adjustable
Flat
101-150mm
101-200kg
M6
51-100mm
21-30mm

£12.50  ea. Excl VAT £15.00  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.50 8%
30 - 49 £10.87 13%
50 + £10.37 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length 26-50mm
Arm Type Adjustable
Base Type Flat
Height 101-150mm
Holding Force 101-200kg
Spindle Size M6
Total Length 51-100mm
Underarm Height 21-30mm
Download STP
GH-11502-BB Datasheet
