8" Super Air Amplifier Kit In Aluminium. 157mm Bore. Amplification Ratio 25-1

Item Code: 120228

8" Super Air Amplifier Kit In Aluminium. 157mm Bore. Amplification Ratio 25-1

Item Code: 120228

8" Super Air Amplifier Kit In Aluminium. 157mm Bore. Amplification Ratio 25-1

Exair Air Amplifiers only require a compressed air connection to work.
These aluminium super air amplifiers 77mm bore and ratio 25-1 are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 3396L/m
Amplification Ratio: 25:1
Output Air Volume: 84900L/min
Sound Level: 88dBA
All measurements based on 5.5Bar

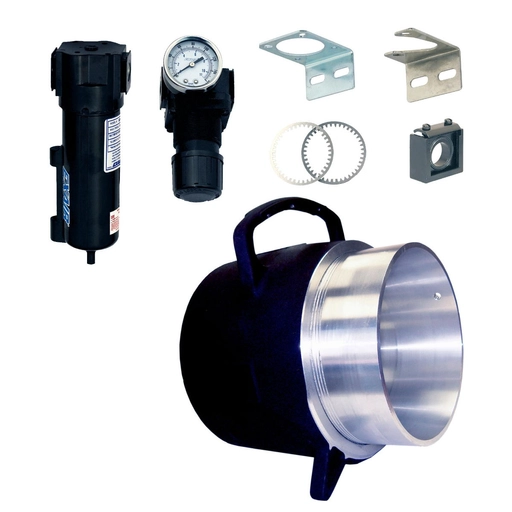

Kit Includes:

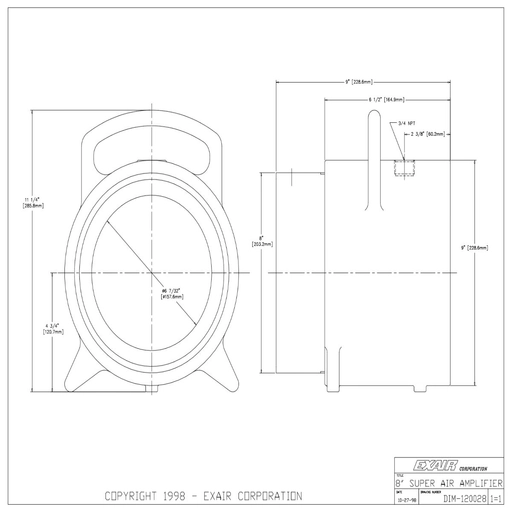

1x 120028 Air Amplifier Only (8" diameter outlet)
1x 6803-.015 .015" Thk. Shim for Model # 120028
1x 9002 Automatic Drain Filter Separator, 3/4 NPT
1x 9009 Pressure Regulator with Gauge, 3/4 NPT
1x 9047 Mounting and Coupling Kit for Model 9002 / 9009

Quick Links

Dispatch by 11/07/25

Bore Size: 157mm

Material: Aluminium

Style: Air Amplifier With Filter

£1743.84 ea. Excl VAT £2092.61 ea. Inc VAT
