4" Super Air Amplifier Kit In Aluminium. 77mm Bore. Amplification Ratio 25-1

Item Code: 120224

4" Super Air Amplifier Kit In Aluminium. 77mm Bore. Amplification Ratio 25-1

Item Code: 120224

4" Super Air Amplifier Kit In Aluminium. 77mm Bore. Amplification Ratio 25-1

Exair Air Amplifiers only require a compressed air connection to work.
These aluminium super air amplifiers 77mm bore and ratio 25-1 are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 826L/m
Amplification Ratio: 25:1
Output Air Volume: 20659L/min
Sound Level: 73dBA
All measurements based on 5.5Bar

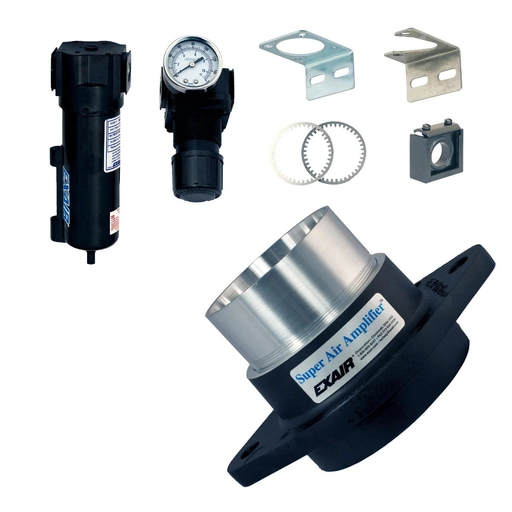

Kit Includes:
1x 120024 Super Air Amplifier Only (4" diameter outlet)
1x 120324 Super Air Amplifier Shim Set
1x 9032 Automatic Drain Filter Separator, 1/2 NPT
1x 9033 Pressure Regulator with Gauge, 1/2 NPT
1x 9046 Mounting and Coupling Kit for model 9001 / 9008 and model 9032 / 9033

Quick Links

Dispatch by 16/06/25

Material: Aluminium

Style: Air Amplifier With Filter

Bore Size: 77mm

£1039.64 ea. Excl VAT £1247.57 ea. Inc VAT
