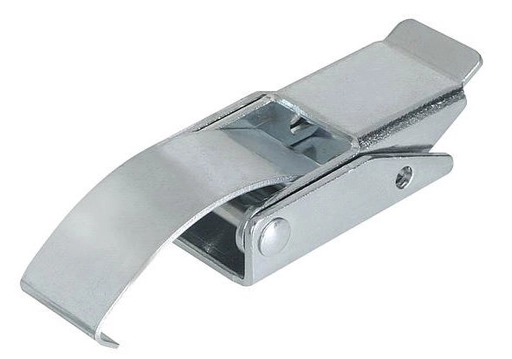

Toggle Latch With Spring Clip In Steel 70mm Overall Length

Item Code: GH-43.1430701

Toggle Latch With Spring Clip In Steel 70mm Overall Length

Item Code: GH-43.1430701

Toggle Latch With Spring Clip In Steel 70mm Overall Length

Order catch plates separately. Part No. GH-43.9143111
Steel Toggle Latch with Spring Clip and 70mm Overall Length has Kipp Part Number K0043.1430701.

Material:
Steel

Version:
Galvanized and blue chromed.

Note:
Latches with spring clips for safe holding and locking of hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by tensioning a spring clip.

The latches can be screwed down or riveted.

The retaining force F1 applies to the latch, not the catch plate.

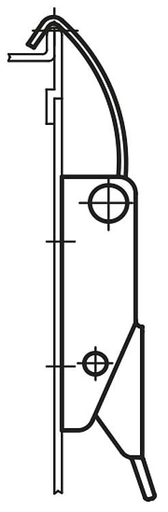

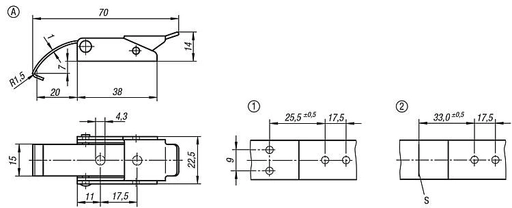

Drawing reference:
1) Hole arrangement for mounting with catch plate
2) Hole arrangement for mounting without catch plate
S = contact edge

Quick Links

50+ in stock

Length: 70mm

Material: Steel

Version: Latch Only

Catch Plate In Steel For GH-43.1430701 - £0.38
Catch Plate In Steel For GH-43.1430701

Qty

£5.13 ea. Excl VAT £6.16 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£4.72	8%
25 - 49	£4.46	13%
50 +	£4.10	20%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Catch Plate In Steel For GH-43.1430701 - £0.38
Catch Plate In Steel For GH-43.1430701

Qty

Quick Links

Product Dimensions

Main material	steel
Item	Latch
Version 1	with spring clip
Version 2	fastening holes covered
Surface finish body	galvanised and passivated
Form	A
Product type	standard
Part Number	GH-43.1430701
Retaining force F1 N	500

Specifications

Length	70mm
Material	Steel
Version	Latch Only

Downloads

DWG Download

GH-43.1430701 Datasheet

IGS Download

STP Download
