Siphon Flat Fan pattern, 0.4 GPH / 1.5 LPH Max

Item Code: SF1010SS

Siphon Flat Fan pattern, 0.4 GPH / 1.5 LPH Max

Item Code: SF1010SS

Siphon Flat Fan pattern, 0.4 GPH / 1.5 LPH Max

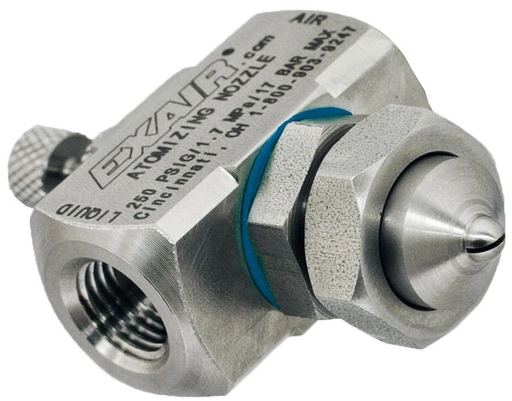

EXAIR's 1/4 FNPT siphon fed flat fan pattern nozzle is great where no liquid pressure is available and a thin coating is needed over a wide band. Flow rate is adjustable via the adjusting valve. Siphon nozzles work best with a suction height of 36" (914mm) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. Siphon fed flat fan pattern nozzles are the best choice where liquid is needed over a broad band such as a moving assembly line. Siphon or gravity fed for non-pressurized applications.

Connection 1/4" NPT

Performance Figures below

Quick Links

Dispatch by 16/06/25

Spray Pattern: Flat Fan

Max Liquid Consumption: 0-50 LPH

£238.83 ea. Excl VAT £286.60 ea. Inc VAT
