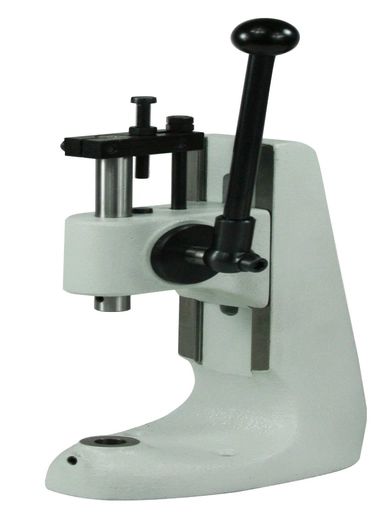

Rack & Pinion Press 36mm Stroke 0.75kN Capacity

Item Code: HP150

Rack & Pinion Press 36mm Stroke 0.75kN Capacity

Item Code: HP150

Rack & Pinion Press 36mm Stroke 0.75kN Capacity

Benzing rack and pinion presses have been specially developed for fine mechanical work. The direct, constant transmission of the applied force enables work to be carried out sensitively and accurately.

The press table is produced in two versions:

Table bore:
The table bore enables tools to be centred quickly and with high repeat accuracy. The tool can be fixed by means of the threaded transverse bore.

T-slot:
Tools can be aligned and fixed in the T-slot with its defined fit.

The different press sizes enable a press to be chosen to match the tool.

The height-adjustable press head on nearly all models enables tools to be changed quickly and the press to be set up to suit different working heights.

The press ram is additionally guided by means of a cylindrical pin and is therefore practically prevented from rotating.

The required working stroke can be adjusted by HP 40 HP 150 HP 150 T means of an adjusting screw.
