Item Code: GH-36224-MSS

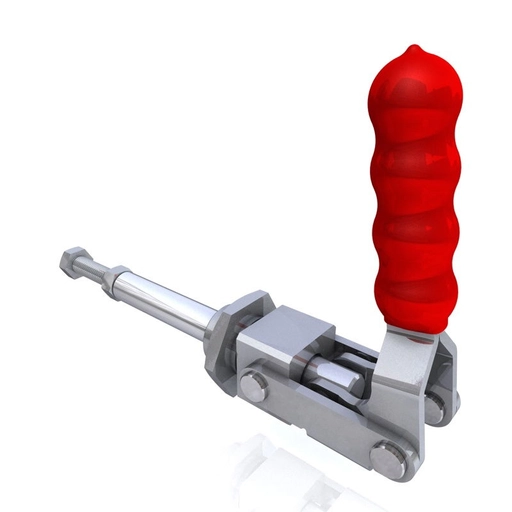

Stainless Steel Push Pull Toggle Clamp. Stroke 66.7mm. Overall Length 170mm. Holding Force 318daN.

Stainless Steel Push Pull Toggle Clamp. Stroke 66.7mm. Overall Length 170mm. Holding Force 318daN.

Item Code: GH-36224-MSS

Stainless Steel Push Pull Toggle Clamp. Stroke 66.7mm. Overall Length 170mm. Holding Force 318daN.

GH-36224-MSS Stainless Steel Push Pull Toggle Clamp with Plunger Stroke 66.7mm and Size 318daN

Holding Force: 318daN
Plunger Stroke: 66.7mm
Weight: 0.69Kg
Spindle Supplied: SA-105015-SS
Optional Bracket: GH-36225
Locknut Supplied: M27 x 2

What's In The Bag
GH-36224-MSS Toggle Clamp
SA-105015-SS M10x50mm Stainless Spindle With Nuts
M27 Locknut

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

101-150mm
301-400kg
61-80mm
M10
Yes
41 to 80mm
151-200mm
Qty
Qty
Qty
Qty
Qty
Qty

£73.41  ea. Excl VAT £88.09  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £67.54 8%
30 - 49 £63.87 13%
50 + £60.93 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Height101-150mm
Holding Force301-400kg
Plunger Stroke61-80mm
Spindle SizeM10
Stainless SteelYes
Stroke Length41 to 80mm
Total Length151-200mm

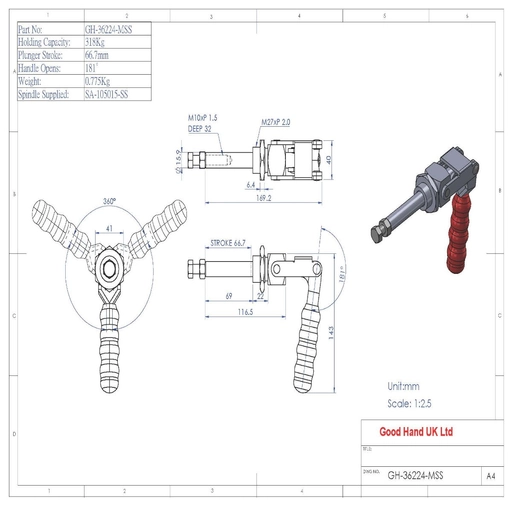

Download STP
GH-36224-MSS Datasheet
