Item Code: GH-36204-MSS

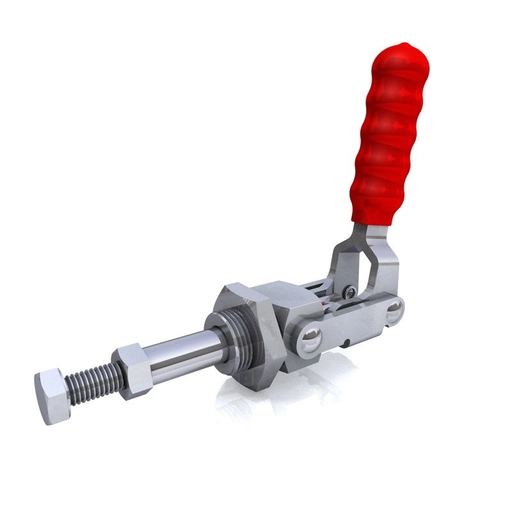

Stainless Steel Push Pull Toggle Clamp. Stroke 40mm. Overall Length 119mm. Holding Force 136daN.

Item Code: GH-36204-MSS

Stainless Steel Push Pull Toggle Clamp. Stroke 40mm. Overall Length 119mm. Holding Force 136daN.

GH-36204-MSS Stainless Steel Push Pull Toggle Clamp with Plunger Stroke 38mm and Size 136daN

Holding Force: 136daN
Plunger Stroke: 40mm
Weight: 0.27Kg
Spindle Supplied: SA-085012-SS
Optional Bracket: GH-36205
Locknut Supplied: M20 x 1.5

What's In The Bag
GH-36204-MSS Toggle Clamp
SA-085012-SS M8x50mm Stainless Spindle With Nuts
M20 Locknut

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

22 in stock

101-150mm
101-200kg
21-40mm
M8
Yes
0 to 40mm
101-150mm
Qty
Qty
Qty
Qty
Qty
Qty

£41.11  ea. Excl VAT £49.33  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £37.82 8%
30 - 49 £35.77 13%
50 + £34.12 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Height101-150mm
Holding Force101-200kg
Plunger Stroke21-40mm
Spindle SizeM8
Stainless SteelYes
Stroke Length0 to 40mm
Total Length101-150mm
Download STP

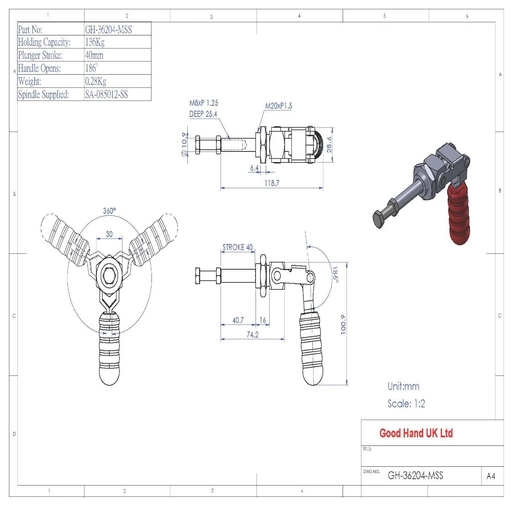

GH-36204-MSS Datasheet
