Item Code: GH-36202-MSS

Stainless Steel Push Pull Toggle Clamp. Stroke 20.3mm. Overall Length 65mm. Holding Force 91daN.

Stainless Steel Push Pull Toggle Clamp. Stroke 20.3mm. Overall Length 65mm. Holding Force 91daN.

Item Code: GH-36202-MSS

Stainless Steel Push Pull Toggle Clamp. Stroke 20.3mm. Overall Length 65mm. Holding Force 91daN.

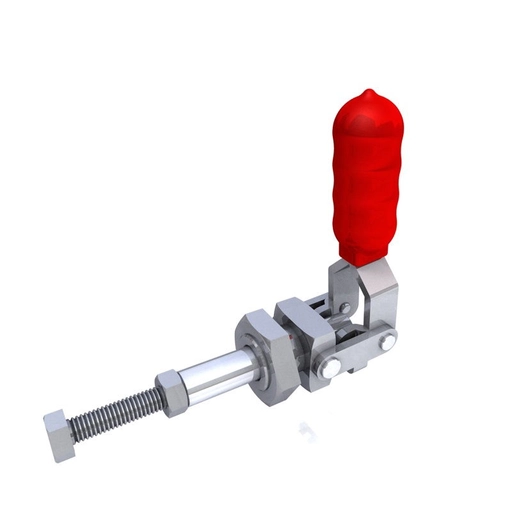

GH-36202-MSS Stainless Steel Push Pull Toggle Clamp with Plunger Stroke 20.3mm and Size 91daN

Holding Force: 91daN
Plunger Stroke: 20.3mm
Weight: 0.113Kg
Spindle Supplied: SA-064010-SS
Optional Bracket: GH-36203
Locknut Supplied: M16 x 1.5

What's In The Bag
GH-36202-MSS Toggle Clamp
SA-064010-SS M6x40mm Stainless Spindle With Nuts
M16 Lock Nut

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

51-100mm
0-100Kg
0-20mm
M6
Yes
0 to 40mm
51-100mm
Qty
Qty
Qty
Qty
Qty
Qty

£38.65  ea. Excl VAT £46.38  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £35.56 8%
30 - 49 £33.63 13%
50 + £32.08 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Height51-100mm
Holding Force0-100Kg
Plunger Stroke0-20mm
Spindle SizeM6
Stainless SteelYes
Stroke Length0 to 40mm
Total Length51-100mm
Download STP

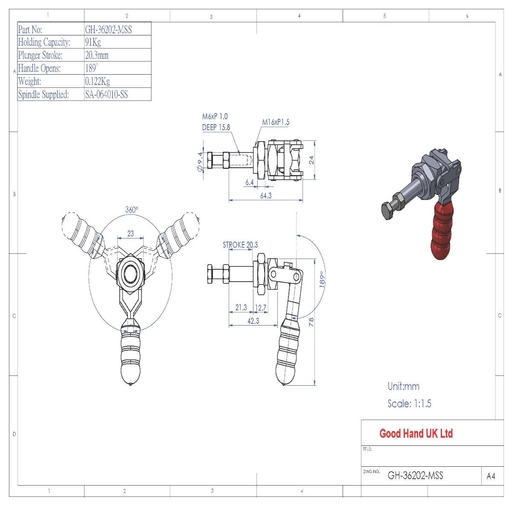

GH-36202-MSS Datasheet
