Item Code: GH-30619M

Push Pull Toggle Clamp. Stroke 77.8mm. Overall Length 272mm. Holding Force 2273daN.

Item Code: GH-30619M

Push Pull Toggle Clamp. Stroke 77.8mm. Overall Length 272mm. Holding Force 2273daN.

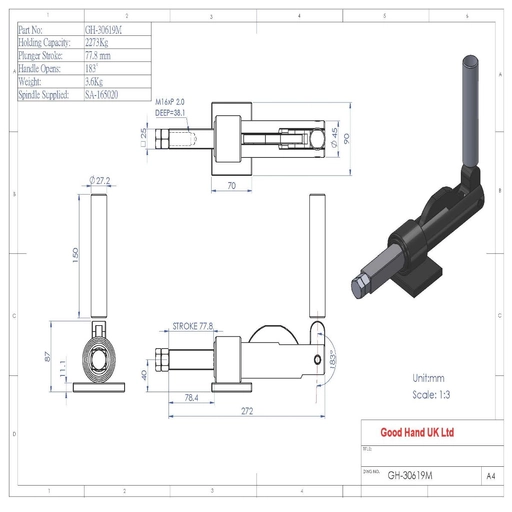

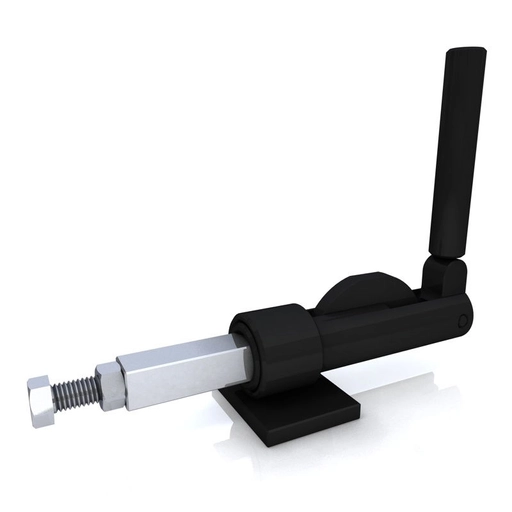

GH-30619M Push Pull Toggle Clamp with Plunger Stroke 77.8mm Size 2273daN

Holding Force: 2273daN
Plunger Stroke: 77.8mm
Weight: 3.5Kg
Spindle Supplied: SA-165020 Standard Spindle
Weldable Handle
This range of clamps are supplied as follows.
1. The handle requires welding to the the mechanism.
2. The base is supplied without fixing holes and needs to be fixed to the mechanism body.
3. The mechanism can be fixed in any position relative to the base.
Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

31 in stock

76-100mm
201-250mm
401+kg
61-80mm
M16
41 to 80mm
251+mm
Qty
Qty
Qty

£145.96  ea. Excl VAT £175.15  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £134.28 8%
30 - 49 £126.99 13%
50 + £121.15 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Arm Length76-100mm
Height201-250mm
Holding Force401+kg
Plunger Stroke61-80mm
Spindle SizeM16
Stroke Length41 to 80mm
Total Length251+mm
Download STP
GH-30619M Datasheet
