Item Code: GH-30750M

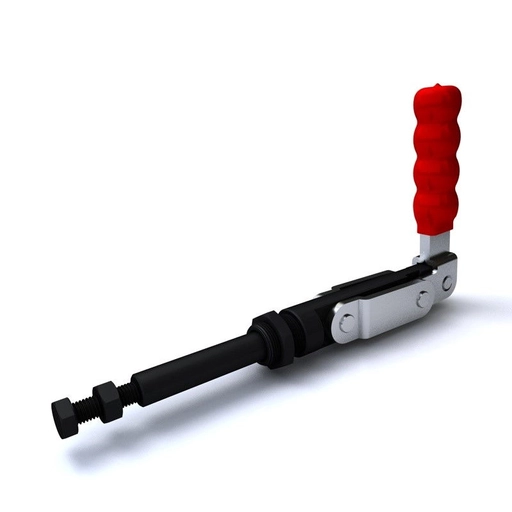

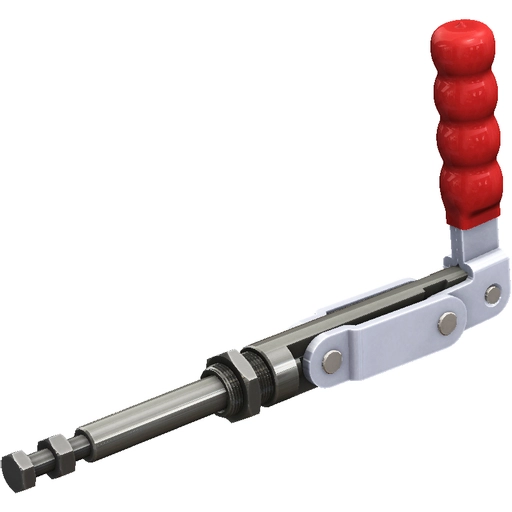

Push Pull Toggle Clamp. Stroke 66mm. Overall Length 235mm. Holding Force 750daN.

Item Code: GH-30750M

Push Pull Toggle Clamp. Stroke 66mm. Overall Length 235mm. Holding Force 750daN.

GH-30750M Push Pull Toggle Clamp with No Mounting Bracket and Plunger Stroke 66mm Size 750daN

Holding Force: 750daN
Stroke: 66mm
Handle Opens: 185°
Weight: 0.95Kg
Spindle Set Supplied: SA-105015

What's In The Bag
GH-30750M Toggle Clamp
SA-105015 M10x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Quick Links

37 in stock

401+kg
101-150mm
201-250mm
76-100mm
M10
61-80mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£78.60  ea. Excl VAT £94.32  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £72.31 8%
30 - 49 £68.38 13%
50 + £65.24 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force401+kg
Height101-150mm
Total Length201-250mm
Arm Length76-100mm
Spindle SizeM10
Plunger Stroke61-80mm
Stroke Length41 to 80mm
Download STP

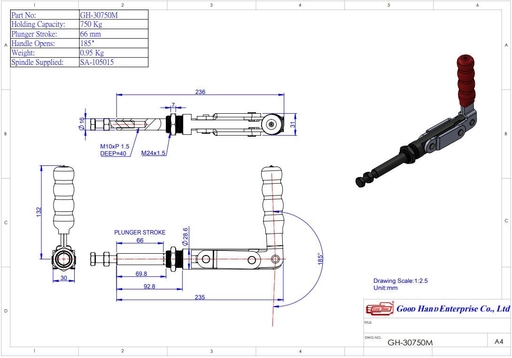

GH-30750M Datasheet
