Item Code: GH-36224M

Push Pull Toggle Clamp. Stroke 66.7mm. Overall Length 170mm. Holding Force 318daN.

Item Code: GH-36224M

Push Pull Toggle Clamp. Stroke 66.7mm. Overall Length 170mm. Holding Force 318daN.

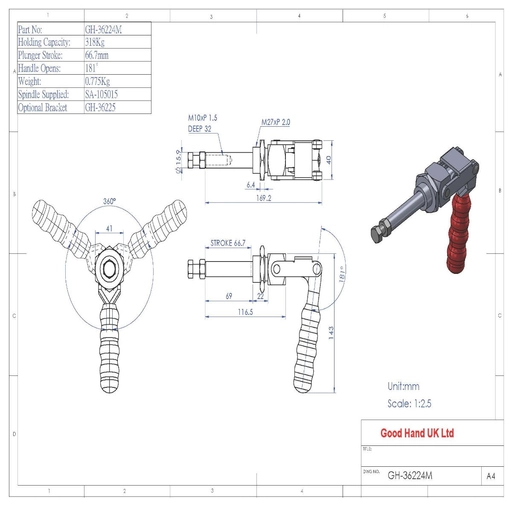

GH-36224M Push Pull Toggle Clamp with Plunger Stroke 66.7mm Size 318daN

Holding Force: 318daN
Plunger Stroke: 66.7mm
Weight: 0.69Kg
Spindle Supplied: SA-105015 Standard Spindle
Optional Bracket: GH-36225
Locknut Supplied: M27 x 2

What's In The Bag
GH-36224M Toggle Clamp
SA-105015 M10x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC


Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

50+ in stock

301-400kg
101-150mm
151-200mm
76-100mm
M10
61-80mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£36.71  ea. Excl VAT £44.05  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £33.77 8%
30 - 49 £31.94 13%
50 + £30.47 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force301-400kg
Height101-150mm
Total Length151-200mm
Arm Length76-100mm
Spindle SizeM10
Plunger Stroke61-80mm
Stroke Length41 to 80mm
Download STP
GH-36224M Datasheet
